A8L V8-4.2L (BFM) (2004)
-

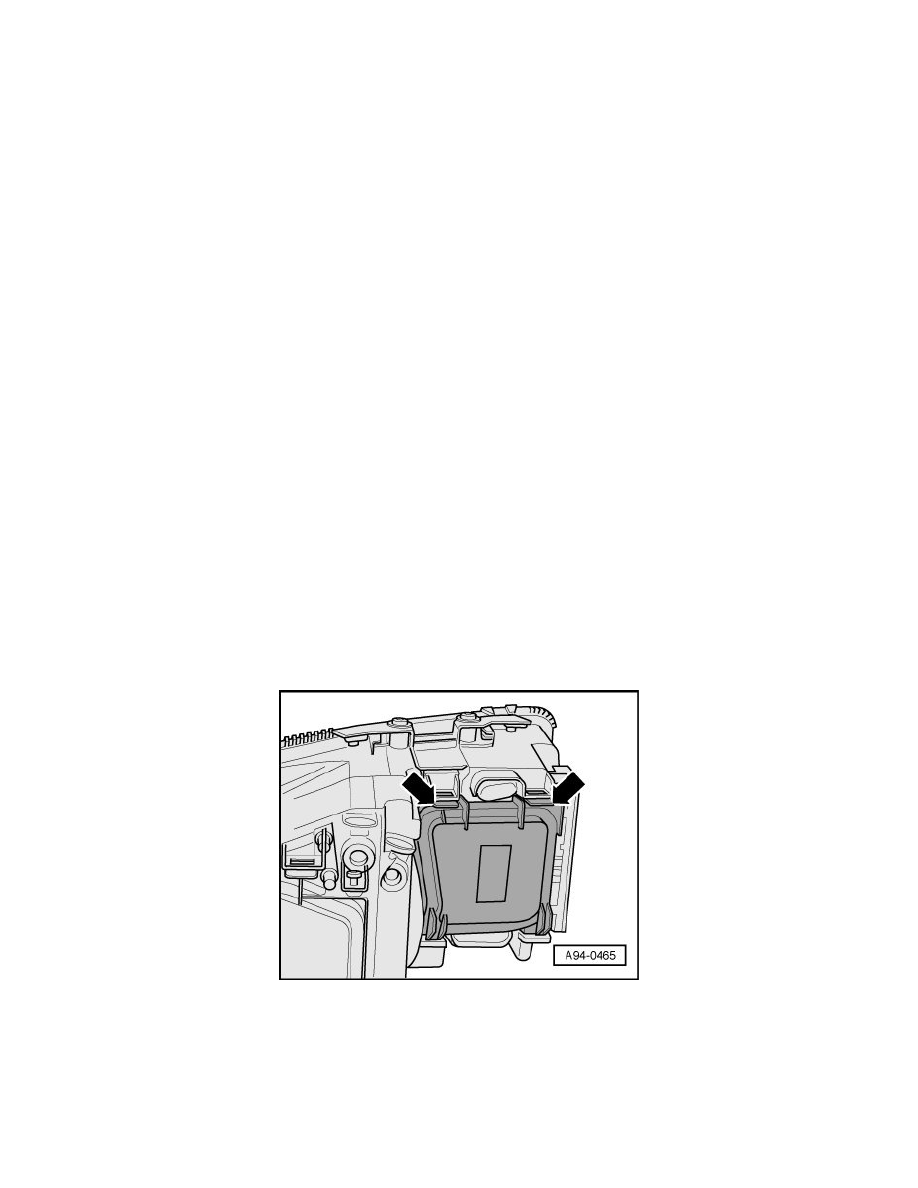

Remove high beam bulb - 1 - from socket - 2 -.
Installing
Install in reverse order of removal, observing the following:
-
Insert new bulb into socket, do not touch glass cone with bare hands when doing so.
-
Secure socket by turning clockwise.
-
Close the housing lid.
-
Connect battery. Required actions, refer to => [ To connect, connect terminal clamp of ground (GND) wire by hand to battery negative terminal
and tighten nut. ] See: Starting and Charging/Tools and Equipment/Battery, Disconnecting and Connecting.
