A8L V8-4.2L (BFM) (2004)
Vanity Lamp: Service and Repair
Rear Vanity Mirror Lamp
Roof Trim Lamps and Switches
Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] See: Service Precautions.
Rear Vanity Mirror Lamp
Removing
-
Remove rear illuminated make-up mirror. Refer to => [ Illuminated Rear Vanity Mirror ]. See: Courtesy Lamp/Service and Repair/Roof Trim
Lamps and Switches/Illuminated Rear Vanity Mirror
-

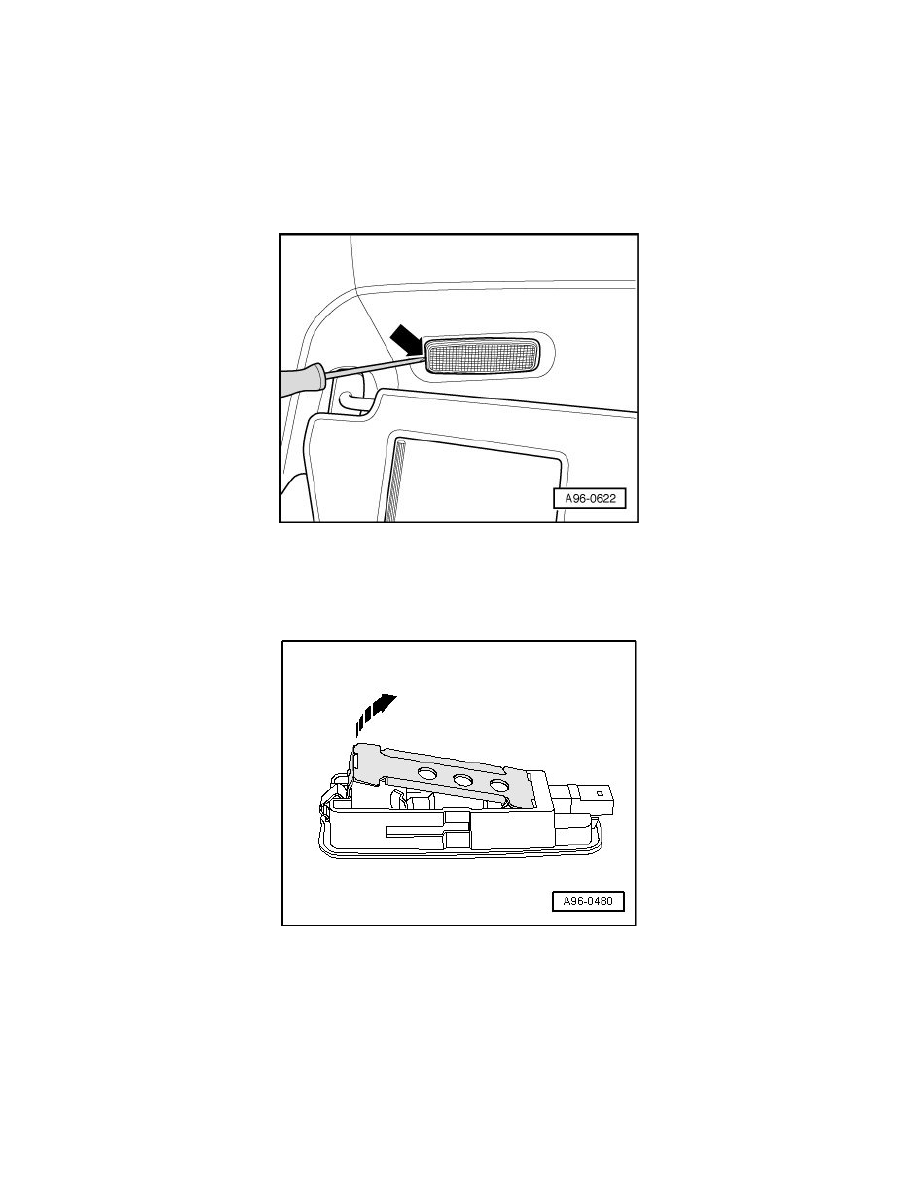

Release lamp cover using a small screwdriver - arrows -.
-
Remove bulb - 1 - (12V, 6 W) out of clamp-type socket.
Installing
Install in reverse order of removal, observing the following:
-
Press on lens for interior lamp until it engages.
