A8L V8-4.2L (BFM) (2004)
/Page-4402001.png)
Electrical Accessory Panel: Procedures
Driver's Electronics Box, Removing And Installing
Location: Under driver's seat
Removing
-
Remove driver's seat.
CAUTION:
-
Switch off all electrical consumers.
-
Switch ignition off and remove ignition key.
-
Remove A-pillar trim.
-
Fold back floor covering.
-

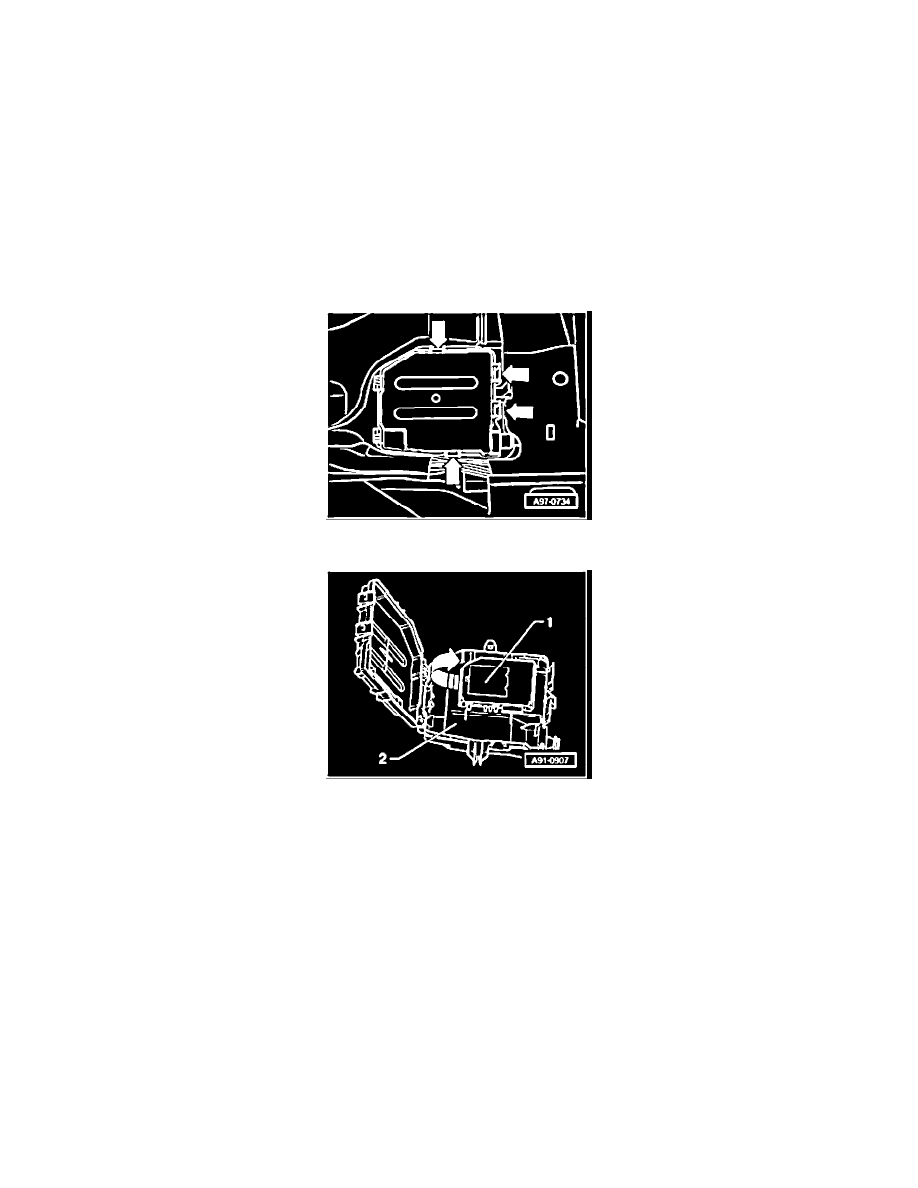

Release cover for driver's electronics box -arrows- and fold cover to side.
-
Remove control modules -1- from driver's electronics box -2-.
-
Remove electronics box.
NOTE: Pin assignments
Installing
Install in reverse order of removal.
