A8L V8-4.2L (BFM) (2004)
/Page-4265001.png)
Fuse Block: Procedures
Fuse Panel In Left Luggage Compartment, Removing and Installing
Fuse Panel In Left Luggage Compartment, Removing And Installing
Removing
CAUTION:
-
Switch off all electrical consumers.
-
Switch ignition off and remove ignition key.
-

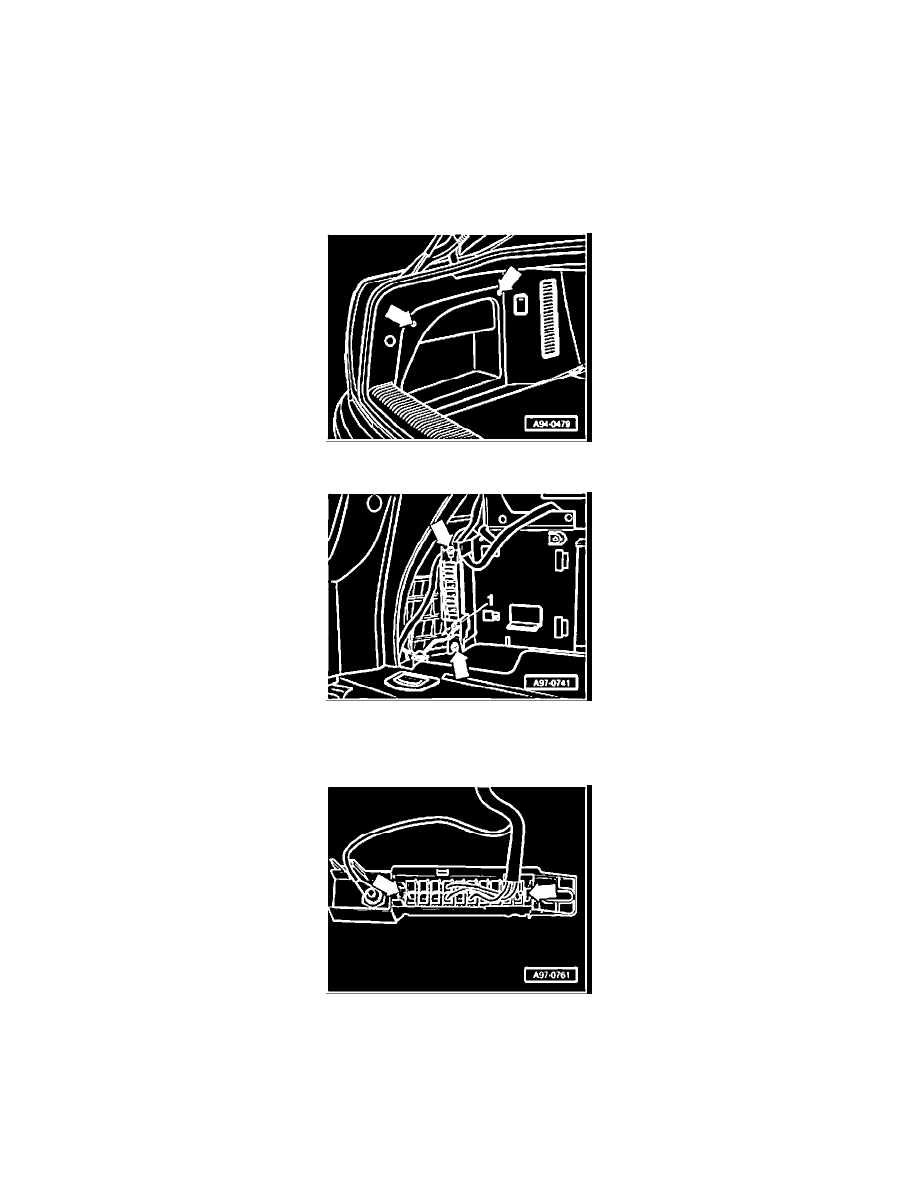

Remove left luggage compartment side trim cover -arrows-.
-
Remove nuts -arrows-.
-
Remove positive wire -1- and fuse box.
-
Remove fuses from fuse box.
-
Release clips -arrows- and remove multi-pin connector from fuse box.
