Q5 Quattro V6-3.2L (CALB) (2009)
/Page-2675001.png)
Parking Assist Control Module: Customer Interest
Parking Assist System - Inoperative/DTC's Set
91 Parking aid system does not work (DTC 1549, 1626-1629)
91 10 10
2023006/1
March 23, 2010
Affected Vehicles
Condition
^ The parking aid system does not work.
^ One or more of the following DTCs may be logged in parking aid control unit J446 (address code 10) for disruption/short circuit to ground:
^
DTC 1549 (supply voltage for parking aid sensor)
^
DTC 1626 (right front parking aid sensor)
^
DTC 1627 (right front center parking aid sensor)
^
DTC 1628 (left front center parking aid sensor)
^
DTC 1629 (left front parking aid sensor)
Technical Background

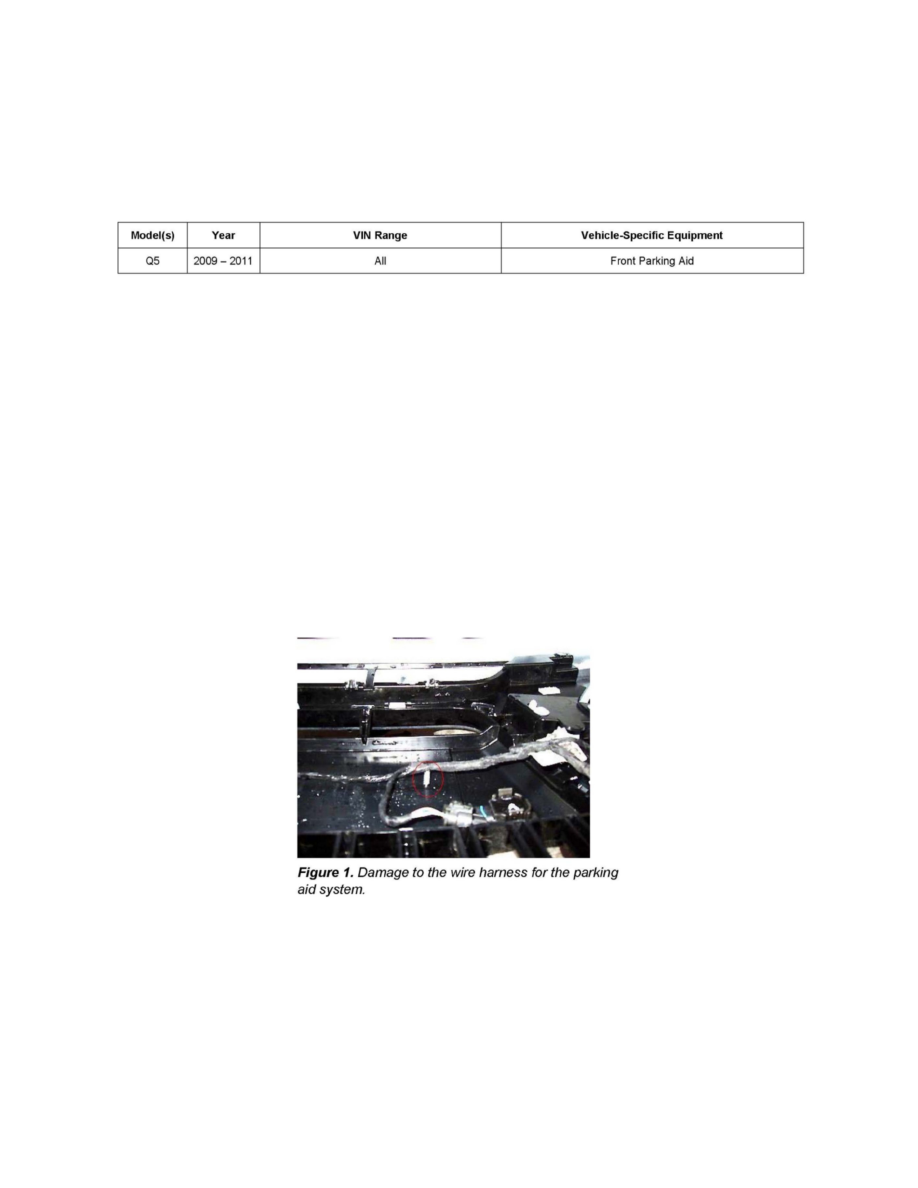

The wire harness for the parking aid system may have been damaged when installing the front license plate frame.
Production Solution
Not applicable.
Service
Repair the wire harness as necessary.
Warranty
This damage is due to outside influence and is not covered by any Audi warranty.
