Door Stop: Service and Repair

Door Arrester

Removing

-

Close the window.

-

Remove the door trim..

-

Remove the lower speaker.

-

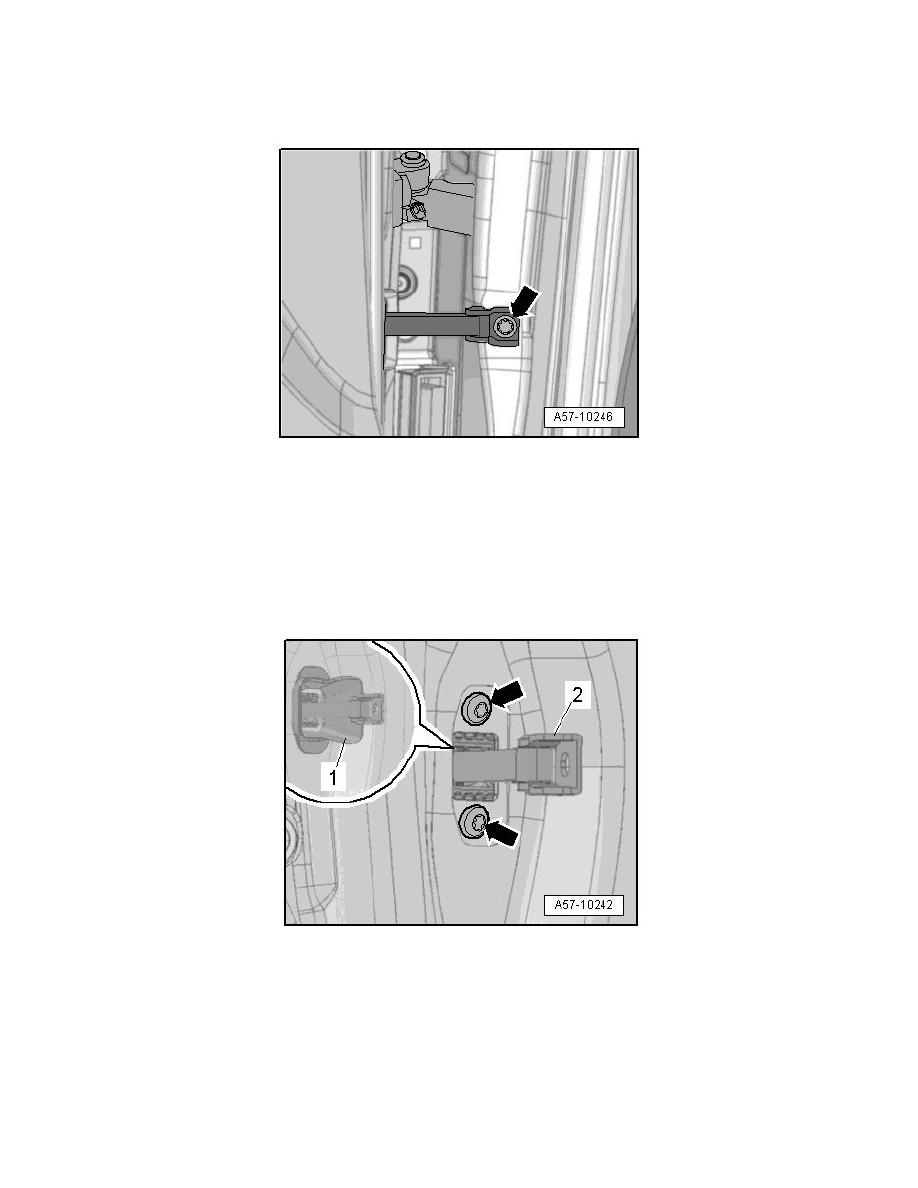

Remove the door arrester bolt - arrow -.

-

Remove the door arrester seal - 1 - on the door opening.

-

Remove the bolt - arrows - and remove the door arrester -  2 - inward.

-

Pull the rubber boot - 1 - on the door arrester to the side slightly - A arrows -.
