Q5 Quattro V6-3.2L (CALB) (2009)
/Page-3332001.png)
Ambient Light Sensor: Service and Repair
Rain/Light Recognition Sensor
‹› When removing the rain/light recognition sensor, a foil will be loosen; replace the foil before reinstalling.
-

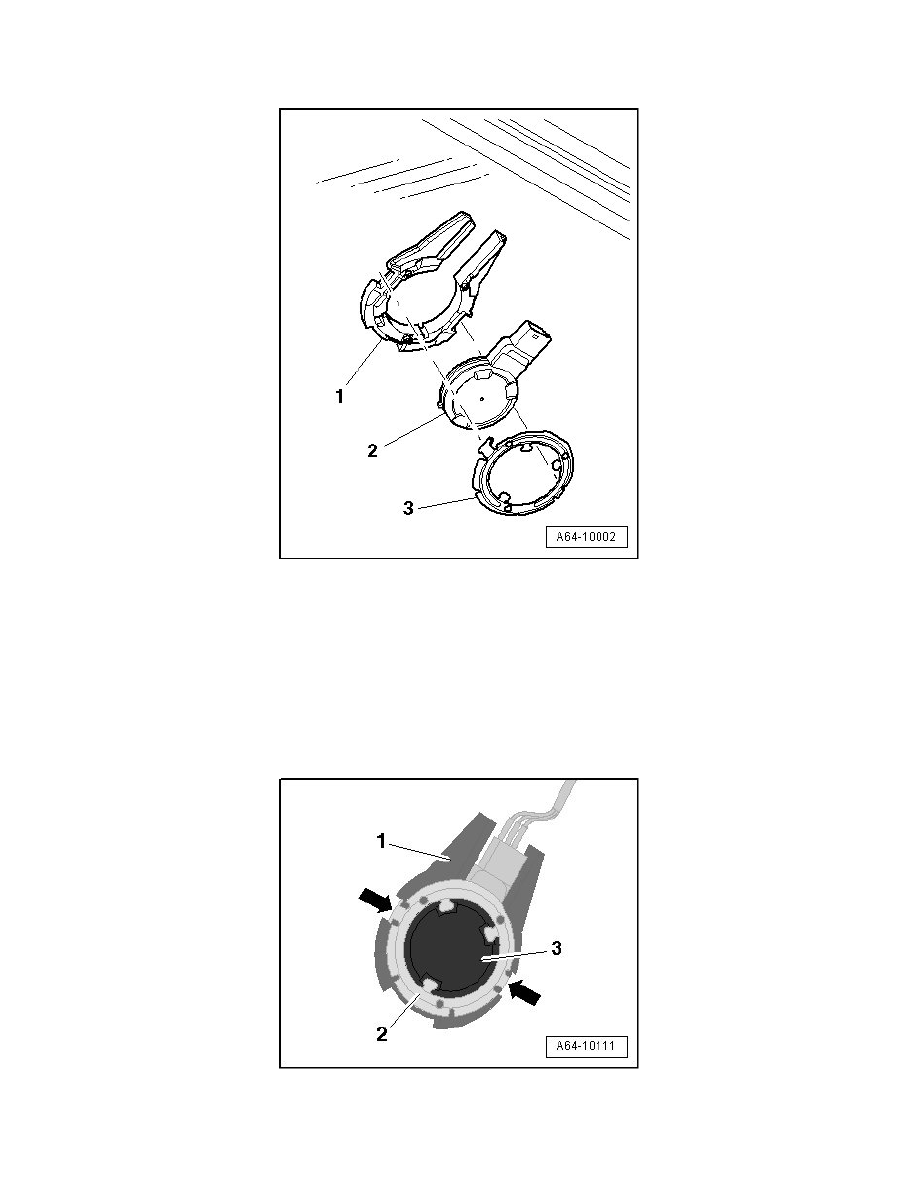

Rearview mirror removed.
‹› Retaining plate - 1 -
‹› Rain/light recognition sensor- 2 -
‹› Retaining clip - 3 -
Retaining Clip, Releasing
-
Disconnect electrical connector.
-
Press clip - 2 - outward at - arrows -, e.g. with a small screwdriver.
