Q5 Quattro V6-3.2L (CALB) (2009)
/Page-924001.png)

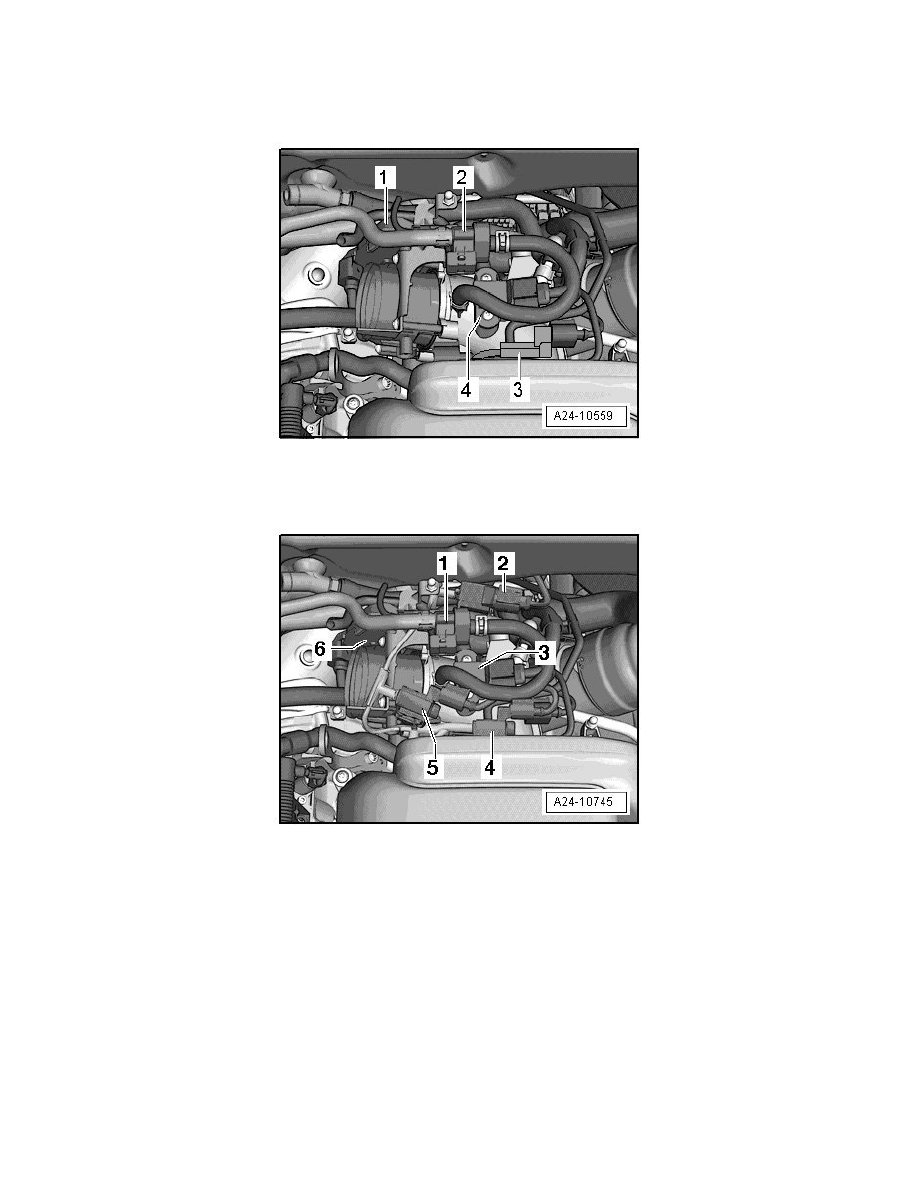

Intake Air Temperature Sensor: Locations
Component Locations Overview
Component location on rear of intake manifold
4
Intake Air Temperature (IAT) Sensor (G42)/Manifold Absolute Pressure (MAP) Sensor (G71)
Rear installation location on the intake manifold (emissions standard ULEV 2)
3
Intake Air Temperature (IAT) Sensor (G42)/Manifold Absolute Pressure (MAP) Sensor (G71)
