Q7 Quattro V6-3.6L (BHK) (2007)
Garage Door Opener Transmitter: Service and Repair
Garage Door Opener Control Module
Garage Door Opener Control Module
Removing
-
Remove front bumper cover. Refer to => Bumper See: Body and Frame/Bumper
-

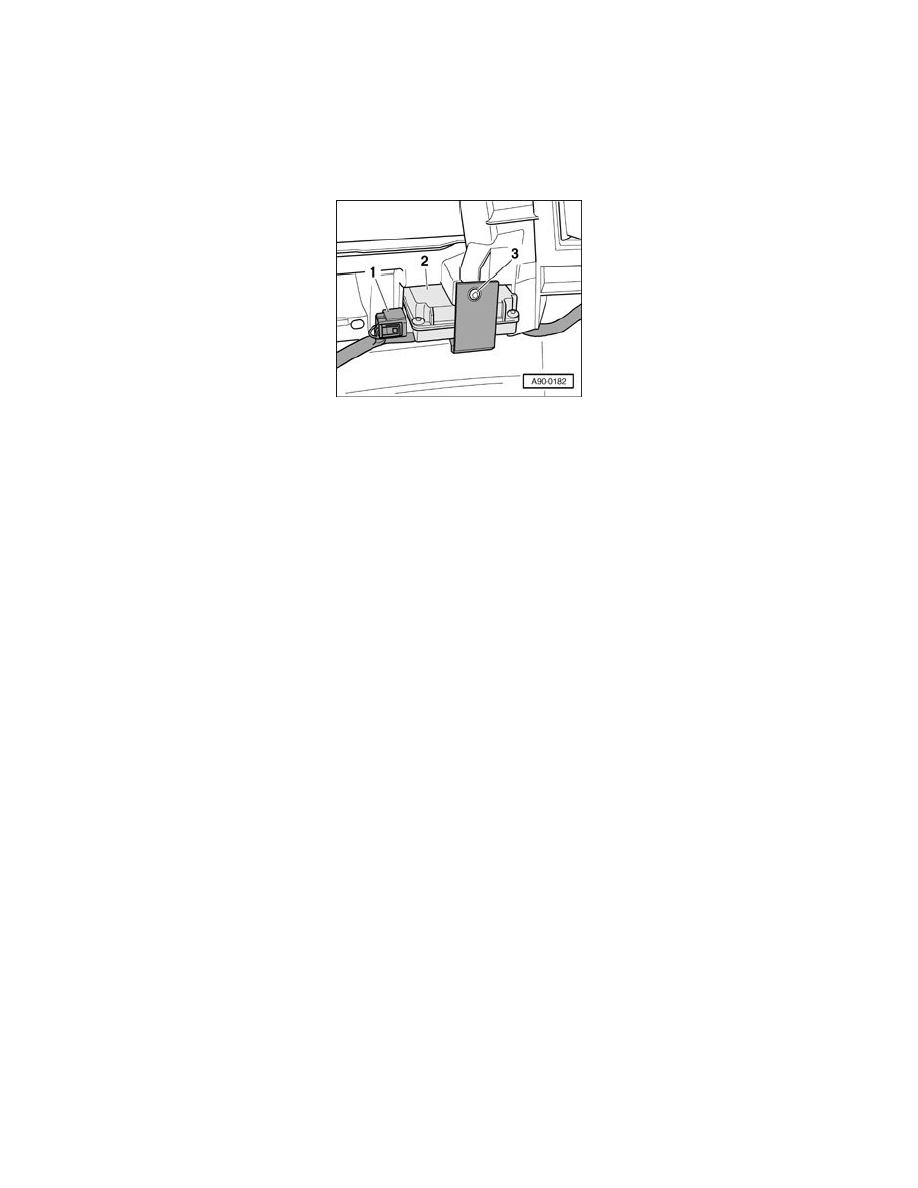

Remove bolt - 3 - and detach retainer.
-
Remove Garage Door Opener Control Module (J530) - item 2 - from bumper cover.
-
Disconnect electrical connector - 1 -.
Installing
Install in reverse order of removal, observing the following:
-
Install front bumper cover. Refer to => Bumper See: Body and Frame/Bumper
Tightening Specifications
