Q7 Quattro V6-3.6L (BHK) (2007)
Steering Mounted Controls Assembly: Service and Repair
Tiptronic Switch, Removing and Installing
Tiptronic Switch, Removing And Installing
CAUTION:
-
Switch off all electrical consumers.
-
Switch off ignition and remove ignition key.
Removing
-
Remove drivers airbag.
-
Disconnect trim ring from steering wheel.
-

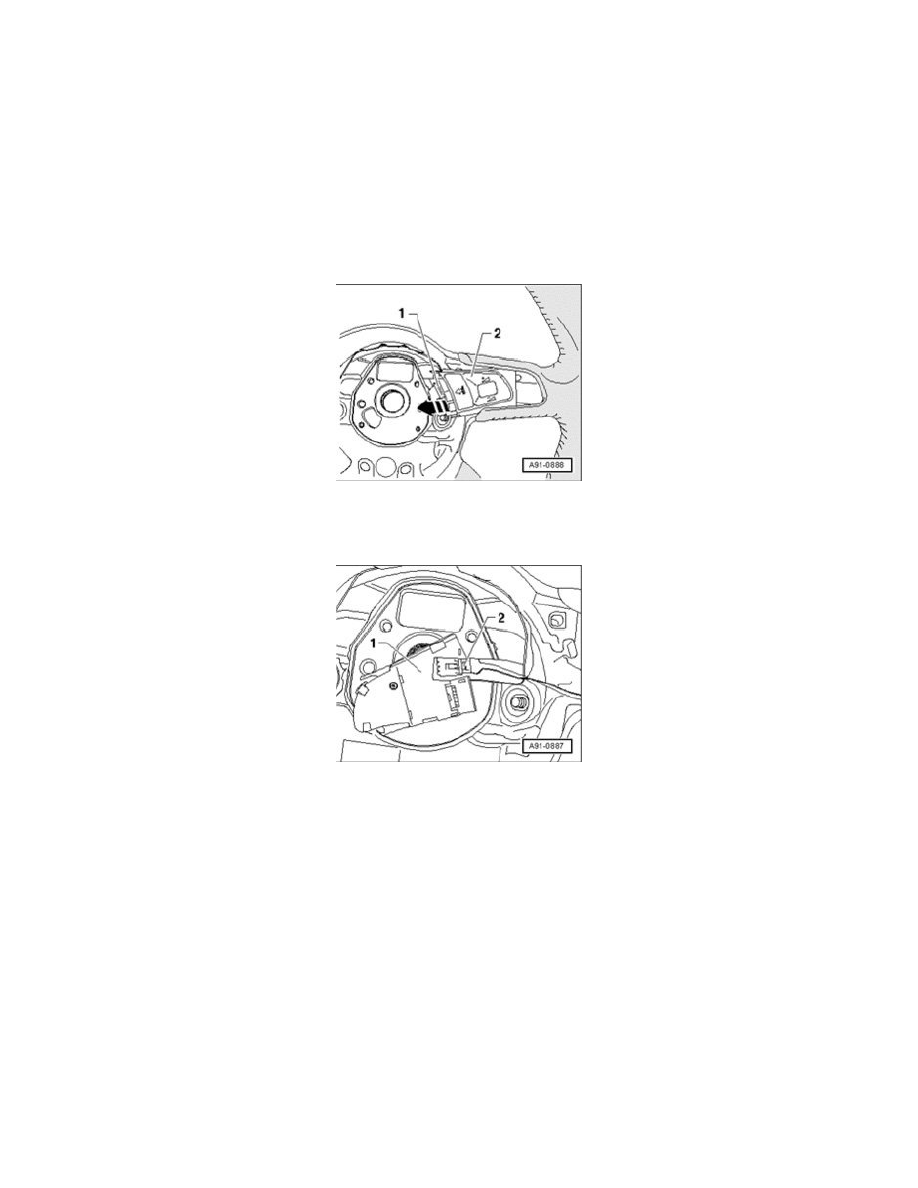

Slide multi-function button - 2 - out of steering wheel in - direction of arrow -.
-
Turn button around.
-
Disconnect harness connector - 2 - at multi-function button - 1 -.
-
Unscrew bolt - arrow - and remove Tiptronic switch to the rear.
Installing
-
Install in reverse order.
Removal and installation of the left switch is identical.
