Steering Mounted Controls Assembly: Locations

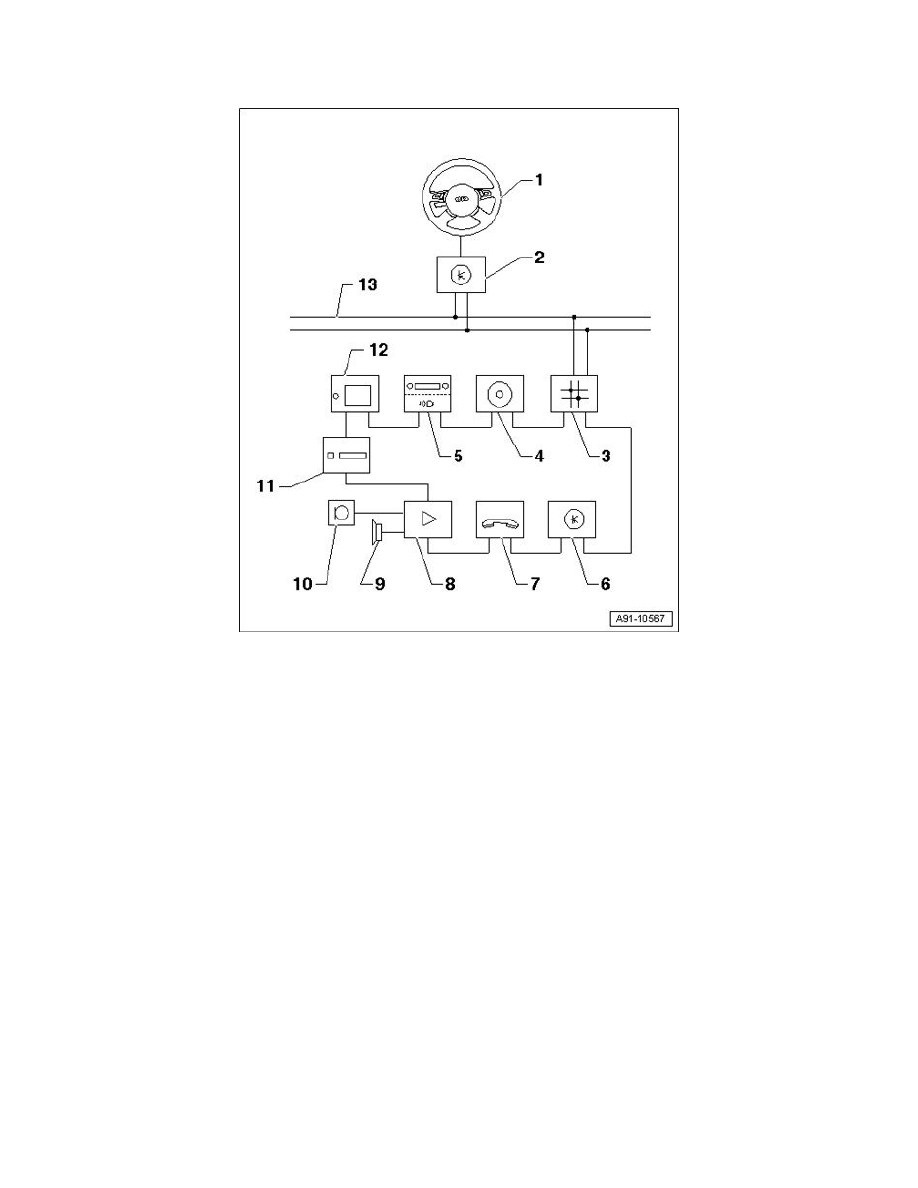

Multi-function Steering Wheel - MMI, Layout

1. Multi-function steering wheel

-

Multi-function Steering Wheel Control Module J453 under right button

-

Removing and installing multi-function buttons

-

Removing and installing Tiptronic buttons

2. Steering Column Electronic Systems Control Module J527

-

On steering column

-

Connector assignment

3. Data Bus On Board Diagnostic Interface J533

-

Behind instrument panel cover, drivers side

-

Connector assignment

4. Media Player, Position 1 R118

-

in center console

-

The following unit may be installed:

CD Changer R41 (MMI)
-

Connector assignment

-

Front Information Display Control Head Control Module J523 with Radio R (MMI basic/basic plus)

-

Connector assignment

5. Radio R (MMI)

-

Optional with Speech Input Control Module J507

-

Behind right luggage compartment side trim

-

Connector assignment Radio R

-

Connector assignment Speech Input Control Module J507

6. Front Information Display Control Head Control Module J523 (MMI)

-

behind glove compartment

-

Connector assignment

7. Telephone Transceiver R36

-

under front passengers seat

-

Connector assignment

8. Digital Sound System Control Module J525 (MMI basic plus, MMI)
