Q7 Quattro V6-3.6L (BHK) (2007)
Rear Door Panel: Service and Repair
BOSE Sound System Trim
BOSE Sound System Trim
Removing
-

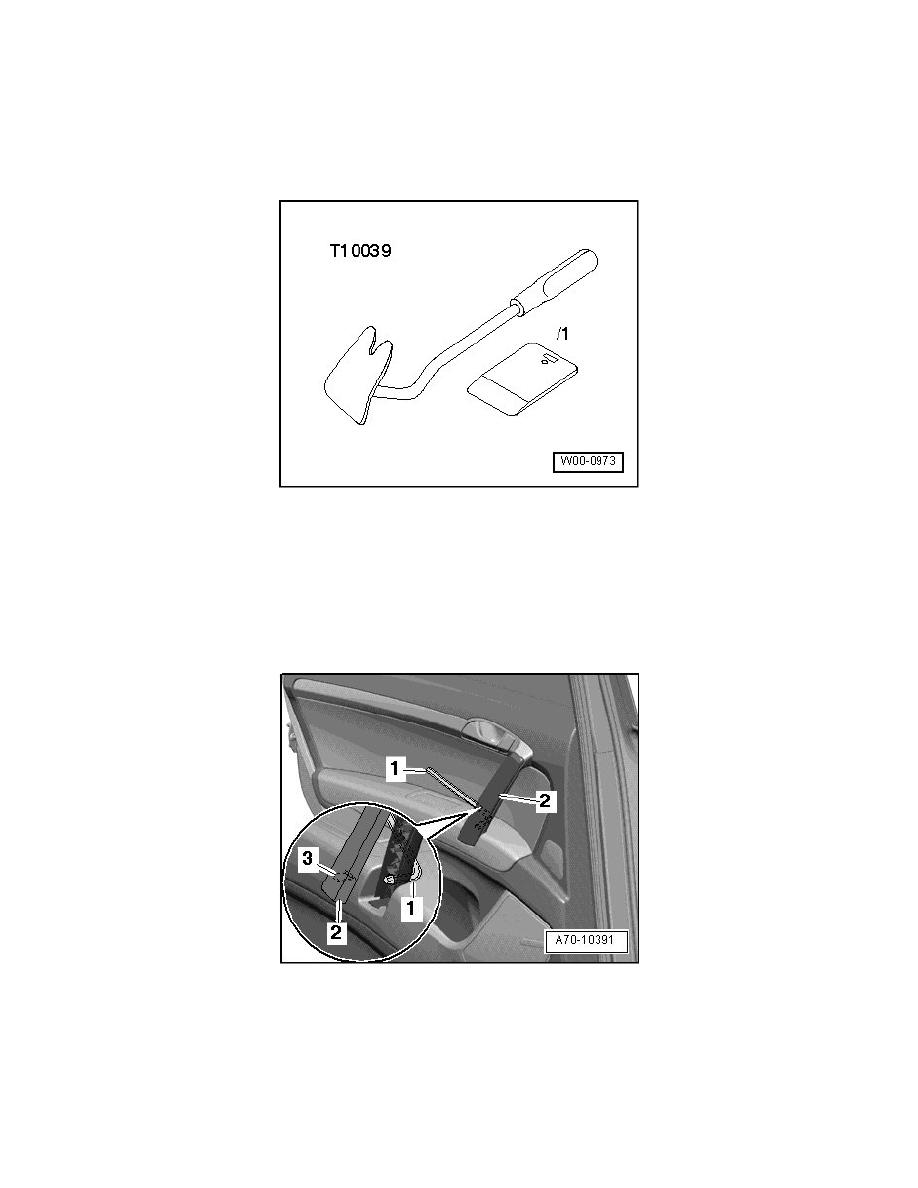

Remove door trim. Refer to => [ Front Door Trim ] See: Front Door/Front Door Panel/Service and Repair/Front Door Trim.
-
Remove insulation in front area from door trim.
-
Pry off clamping washers - arrows -.
-
Remove BOSE sound system trim panel - 1 - from door trim.
Installation
To install, perform the steps used in removal in reverse order.
