Q7 Quattro V6-3.6L (BHK) (2007)
/Page-7386001.png)
Rear Fender Liner: Service and Repair

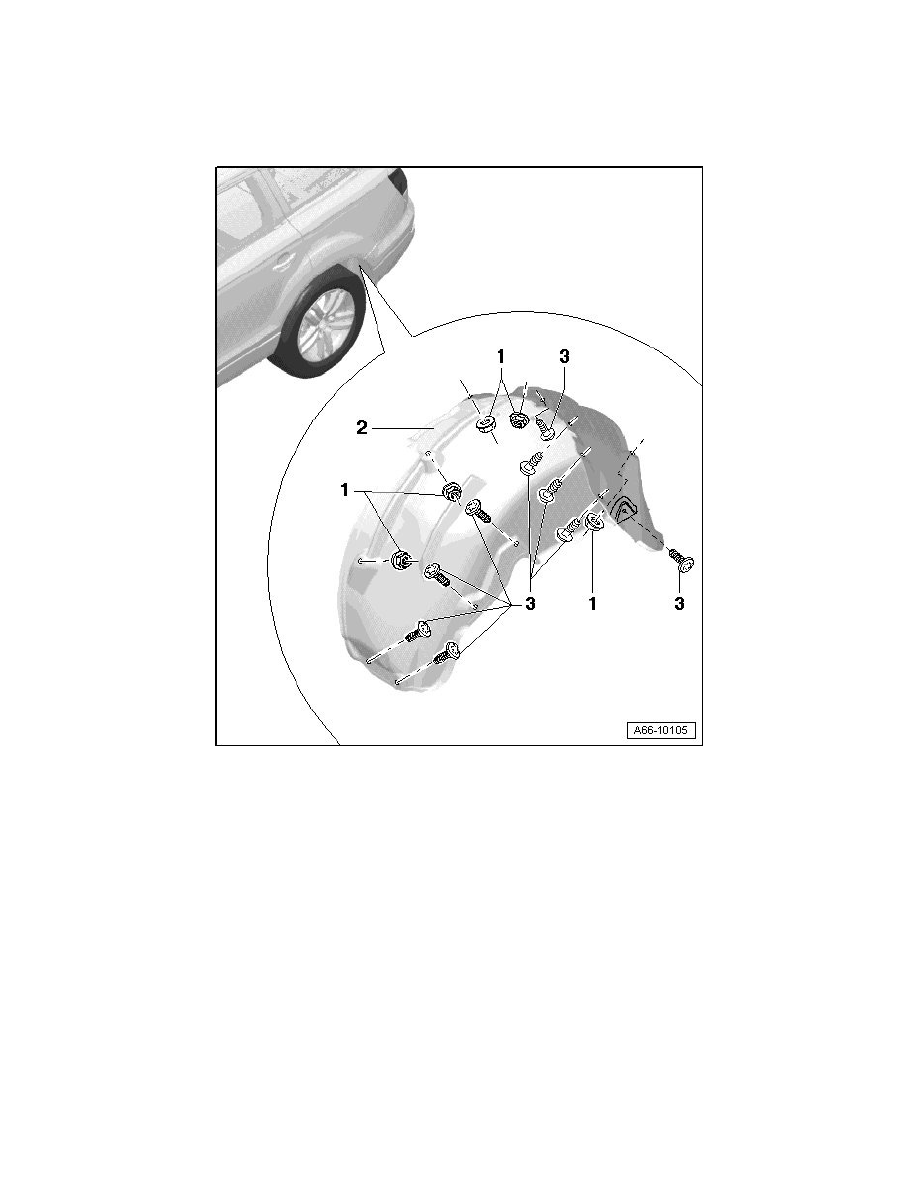

Rear Wheel Housing Liners
Rear Wheel Housing Liners
‹› To remove rear wheel housing liner, it is not necessary to remove rear wheel through strong shock absorber rebound.
1
Nut
‹› 1.5 Nm
2
Rear wheel housing liner
-
To remove, remove all screws and nuts.
-
Remove wheel housing liner under side panel and raise over rear wheel out of wheel housing.
3
Screw
‹› 1.5 Nm
