Luggage Rack: Service and Repair

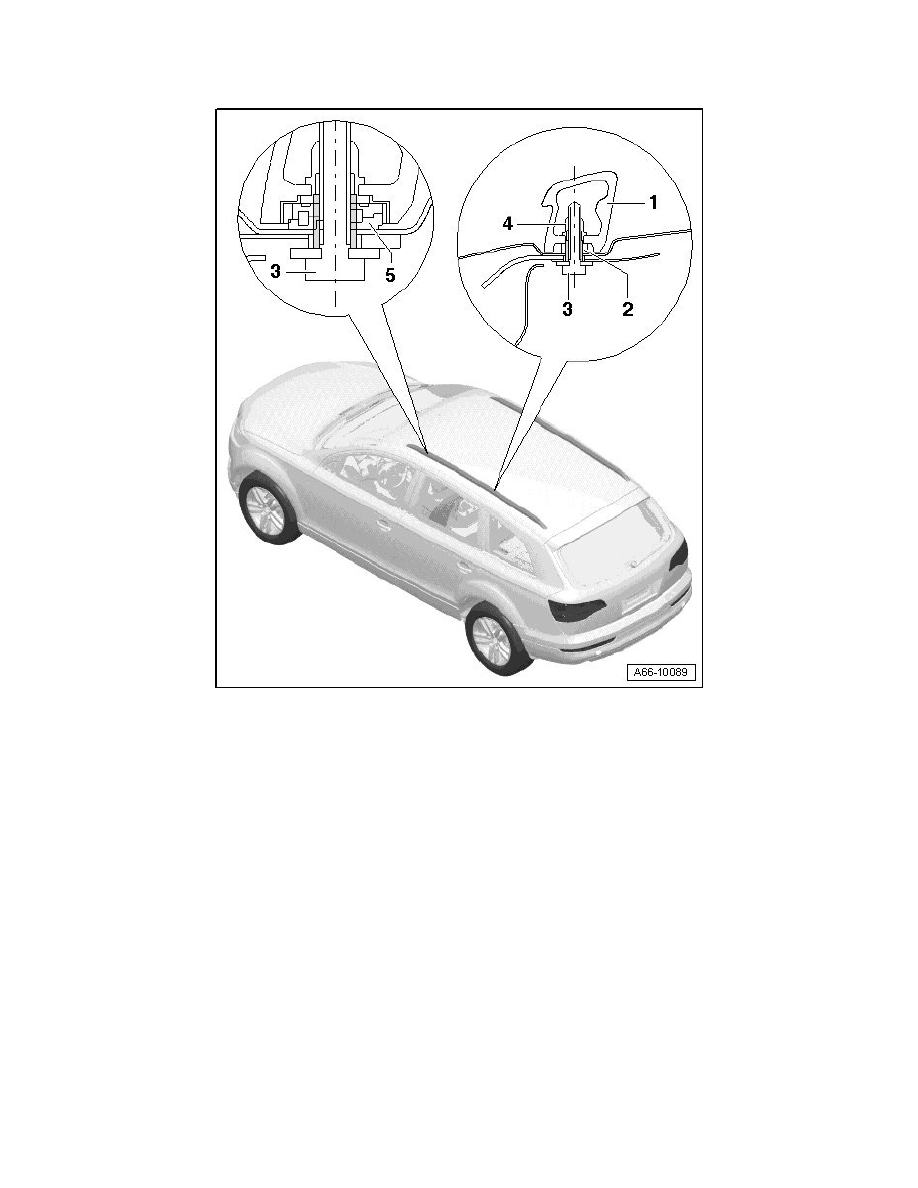

Roof Rail

1

Roof rail

‹› Lower molded headliner

2

Seal

‹› Self-adhesive

‹› Belongs to roof rail delivery casing.

3

Combination screw

CAUTION!
Screws must be replaced after each removal.

‹› Follow installation sequence.

-

Tighten screws in sequence - a -,- b -,-  c -,- d - and - e -

‹› Tighten to 15 Nm.

4

Threaded bushing

‹› No replacement part

5

Adjusting element
