Q7 Quattro V6-3.6L (BHK) (2007)
1
-

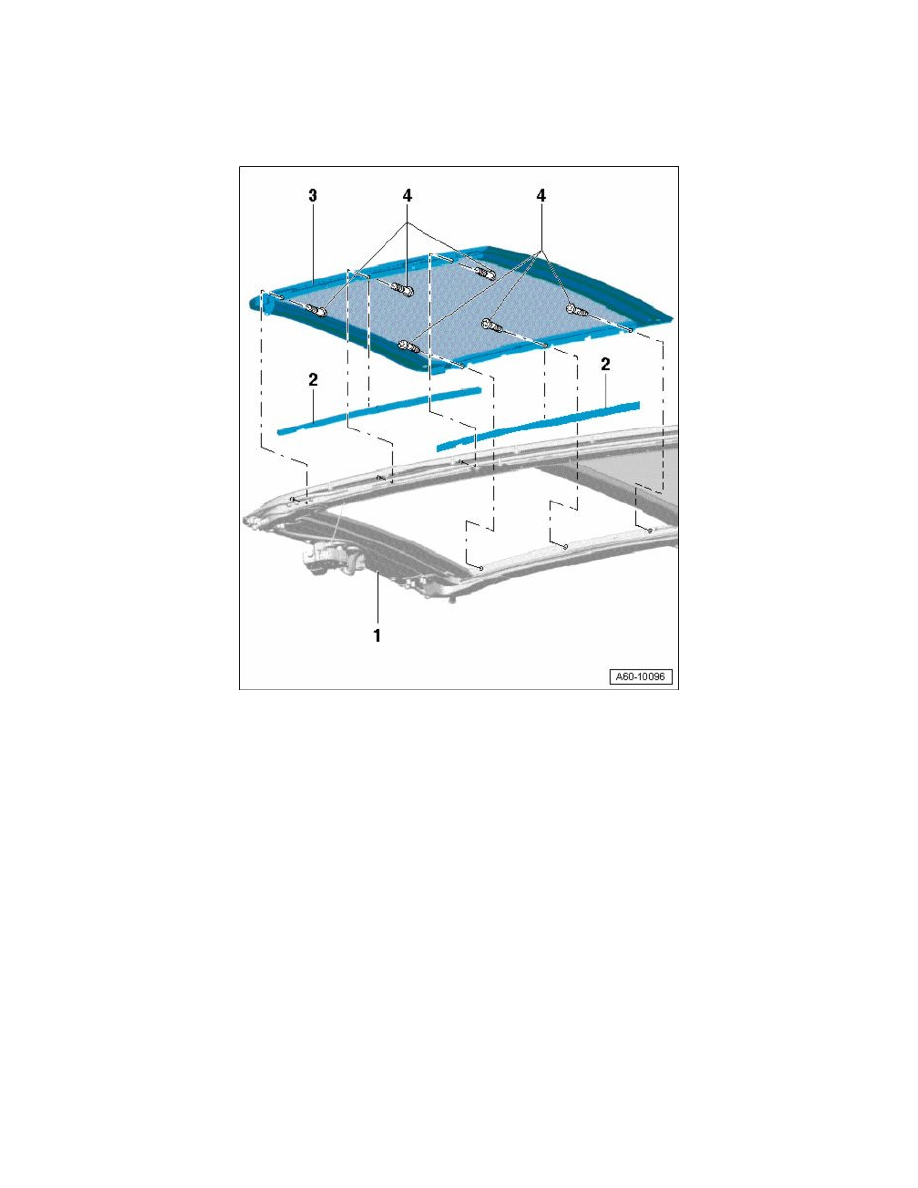

Sunroof frame
2
-
Trim
Removal:
-
Position panel 3.
-
Unclip trim in center and move slightly to side.
-
Slide trim back until it can be removed from keyhole-shaped hole.
Installing:
-
Installation of each trim panel occurs in reverse sequence. This engages trim in panel.
3
-
Panel 3
Removal:
-
Position panel 3.
NOTE: Small markings (3 each) applied to plastic edge of panel that make it easier to find screw positions.
-
For removal, remove side securing screws.
-
Remove panel 3 upward.
Installing:
-
Insert cover with tilted tilting mechanism according to attachment points.
-
Lightly tighten side screws on panel 3.
-
Close cover and check adjustment.
-
Perform panel 3 adaptation.
-
Insert side trim panels.
4
-
Screw
-
4.5 Nm
Remove trim.
-
Position panel.
