Head Rest: Service and Repair

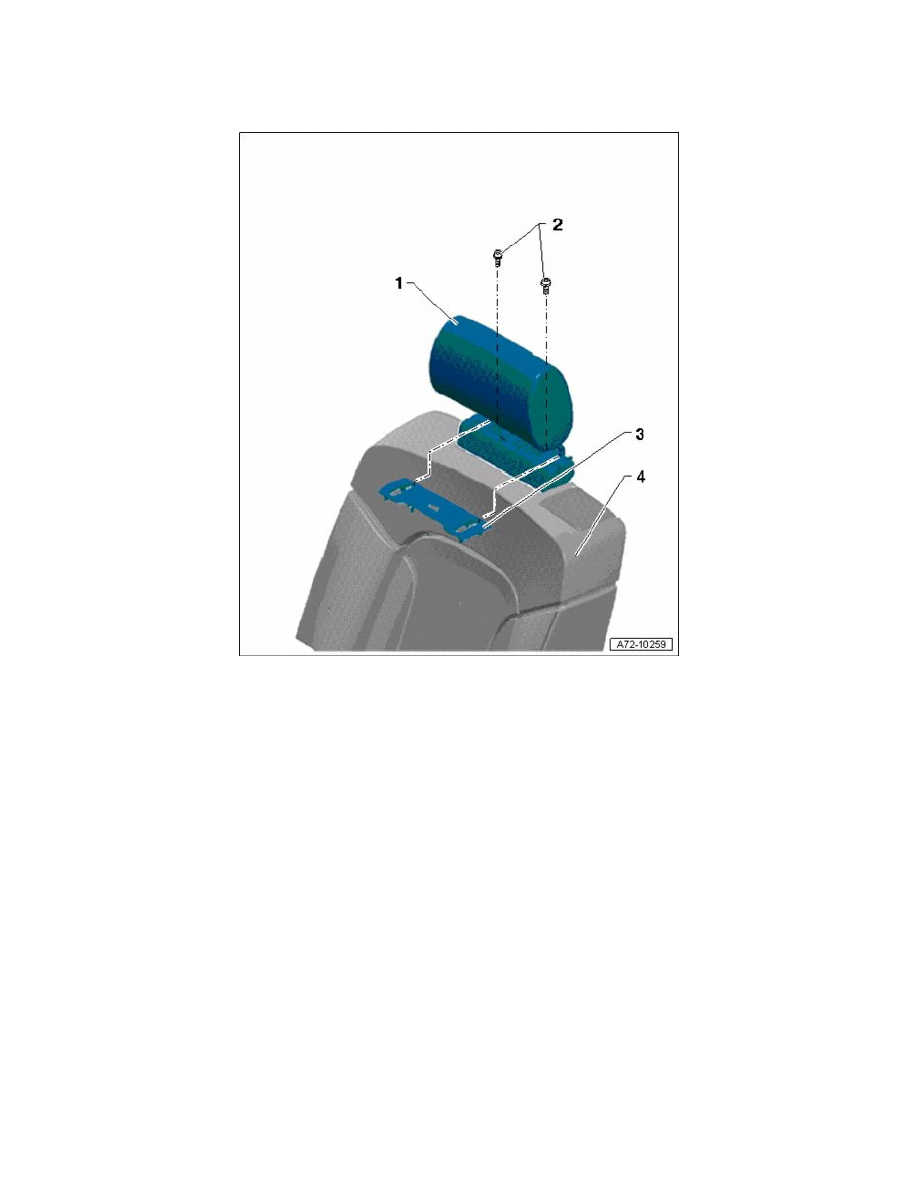

Headrest

Headrest

1

-

Headrest

2

-

Screw, self-locking
-

Tightening torque: 10 Nm

-

Replace after each disassembly

-

Clean nut threads before installing new screws

3

-

Headrest cover
-

Clipped in

4

-

2nd row backrest
