Q7 Quattro V6-3.6L (BHK) (2007)
/Page-8121001.png)
Seat Cushion: Service and Repair
Third Row Seat
Seat Cushion, Third Row
Removing
-

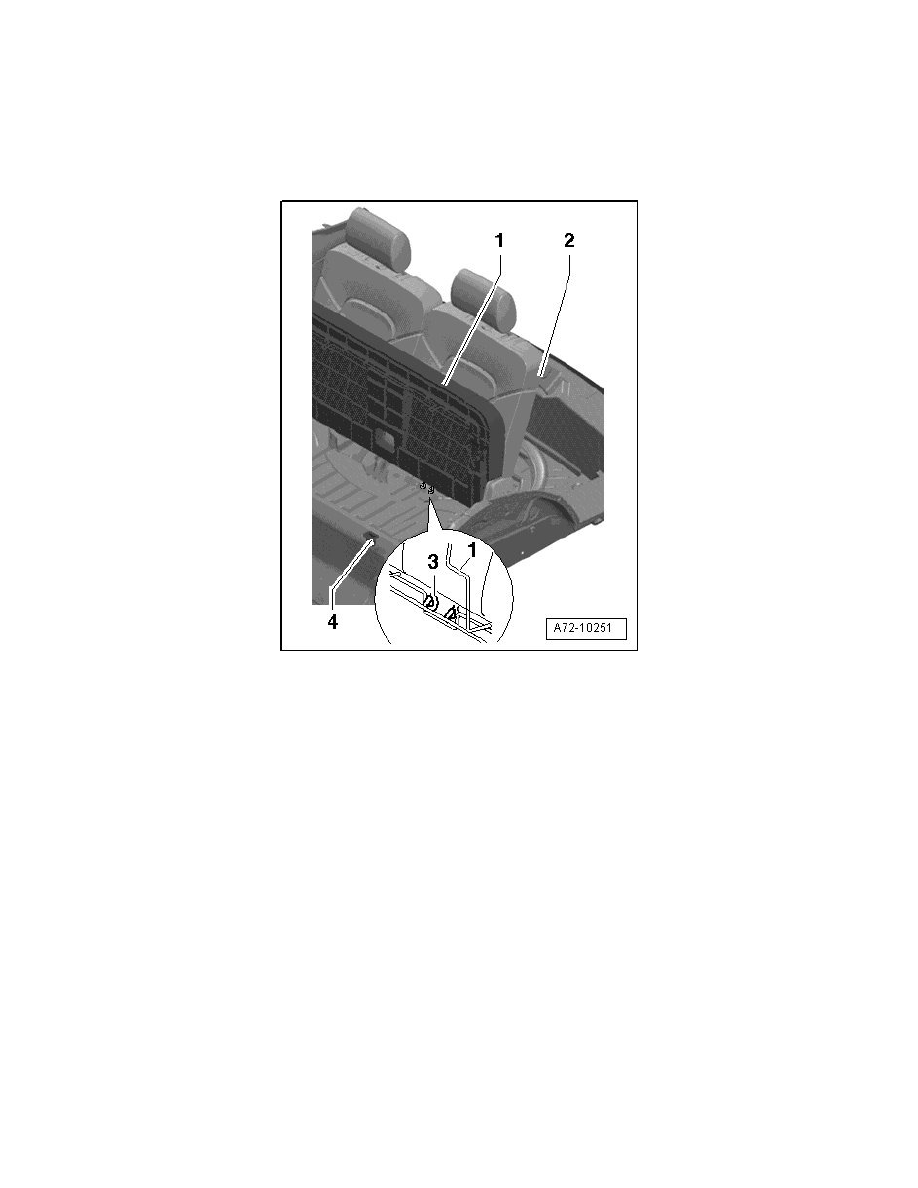

Pull seat cushion - 1 - upward at front edge out of left and right mounting grommets - 4 -.
-
Tip seat cushion - 1 - onto backrest - 2 -.
-
Disengage seat cushion - 1 - from left and right mount - 3 -.
-
Remove seat cushion - 1 - from vehicle.
Installing
To install, perform the steps used in removal in reverse order. Observe the following when doing so:
-
Ensure seat cushion - 1 - is engaged correctly in mount - 3 -.
