Q7 Quattro V6-3.6L (BHK) (2007)
/Page-8123001.png)
Seat Fan: Service and Repair
Upper Backrest Fan
Upper Backrest Fan
Removing
-
Remove backrest cover panel. Refer to => [ Backrest Cover ] See: Service and Repair/Removal and Replacement/Power Front Memory Seats.
-

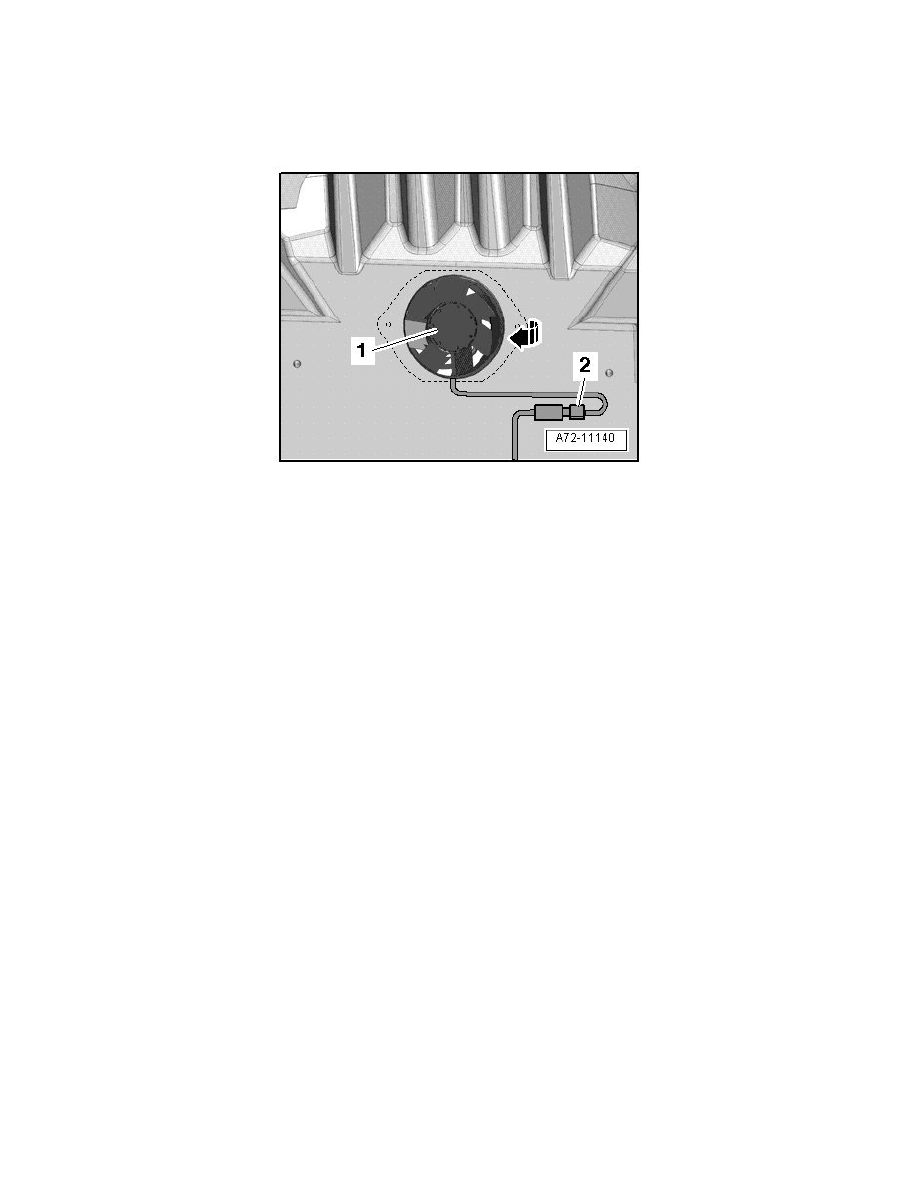

Disconnect and free up the electrical connector - 2 -.
-
Carefully tilt the backrest fan - 1 - out of the backrest upholstery - arrow -.
Installation
Installation is reverse of removal, but note the following:
Upper fan installation position:
‹› The electrical wire faces down.
‹› The securing eyes on the fan housing face to the side.
