Q7 Quattro V6-3.6L (BHK) (2007)
/Page-8154001.png)
Seat Heater: Service and Repair

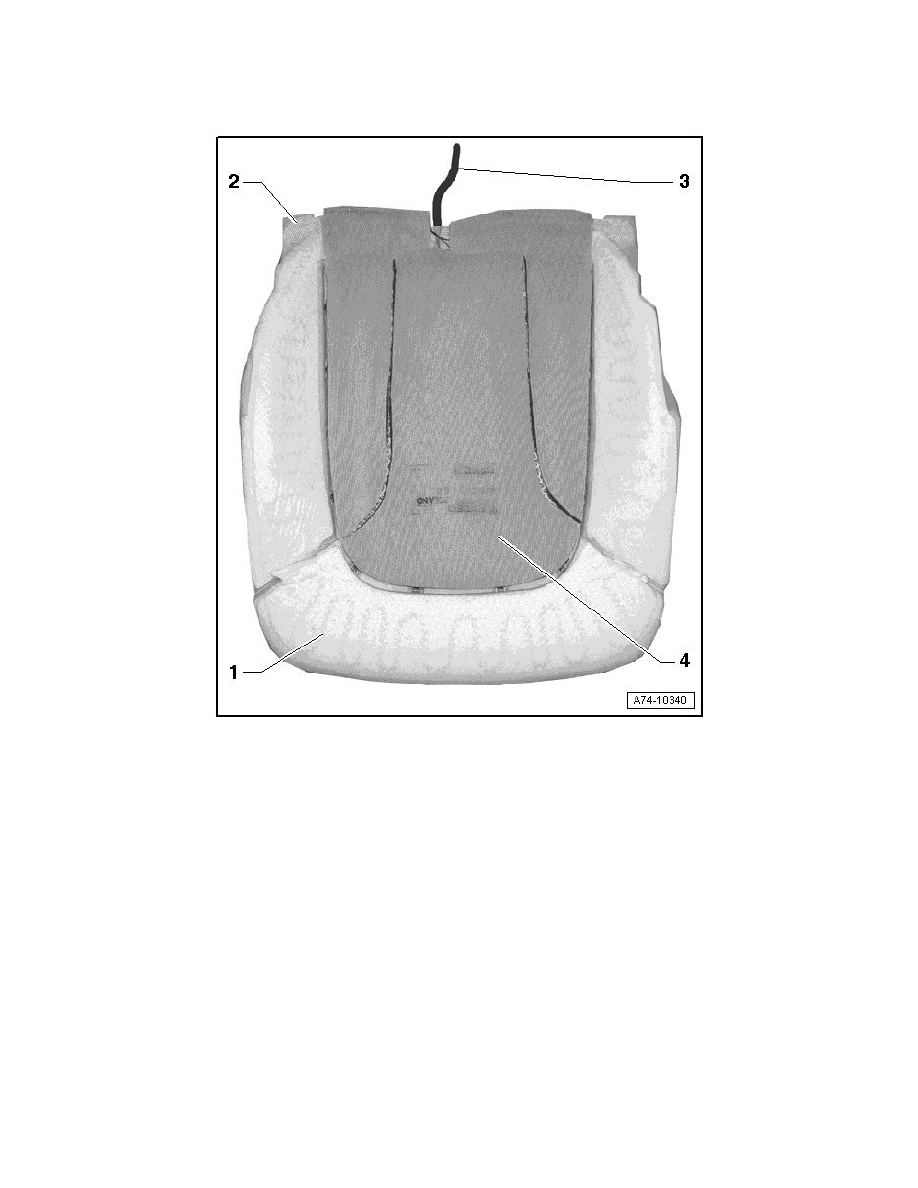

Seat Heating Element Assembly Overview
Seat Heating Element Assembly Overview
1
Bolster Heating Element
‹› Removing and Installing, refer to => [ Seat Heating Element ] See: Service and Repair/Overhaul/Seats - Upholstery, Covers/Front Seat/Front
Seat Cover and Cushion, Comfort Seat
2
Cushion
‹› For seat pan
3
Wiring
‹› Permanently attached to the heating element
4
Seat Heating Element
‹› Removing and Installing, refer to => [ Seat Heating Element ] See: Service and Repair/Overhaul/Seats - Upholstery, Covers/Front Seat/Front
Seat Cover and Cushion, Comfort Seat
