Q7 Quattro V6-3.6L (BHK) (2007)
Brakes and Traction Control
Power Brake Assist
Vacuum Pump, Brakes / Component Information

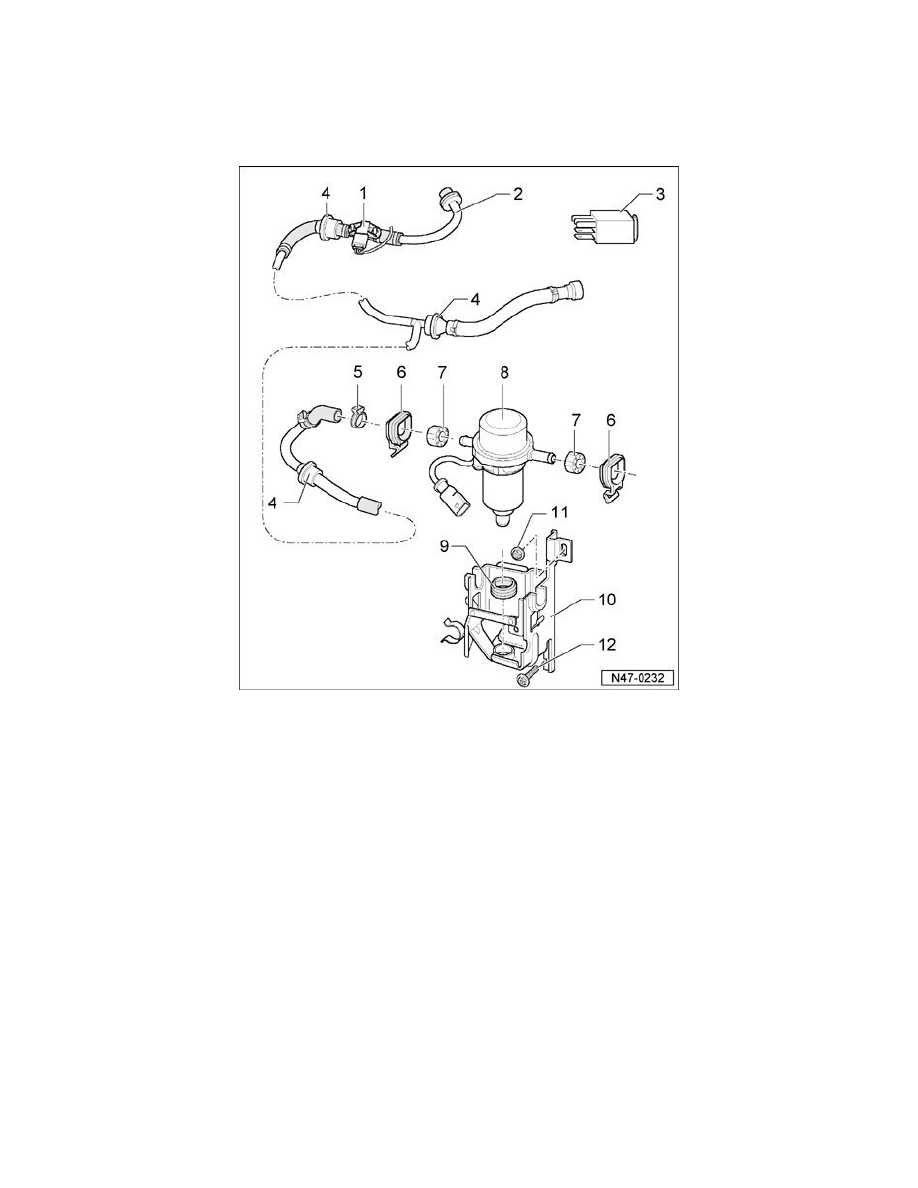

Service and Repair / Brake System Vacuum Pump V192, Assembly Overview
Page 10950
Page 2
5
O-Ring
‹› Replace
6
Intake camshaft
7
O-Ring
‹› Replace
8
O-Ring
‹› Replace
Brakes and Traction Control
Power Brake Assist
Vacuum Pump, Brakes / Component Information
Service and Repair / Brake System Vacuum Pump V192, Assembly Overview
Page 10950
