Thermostat: Service and Repair

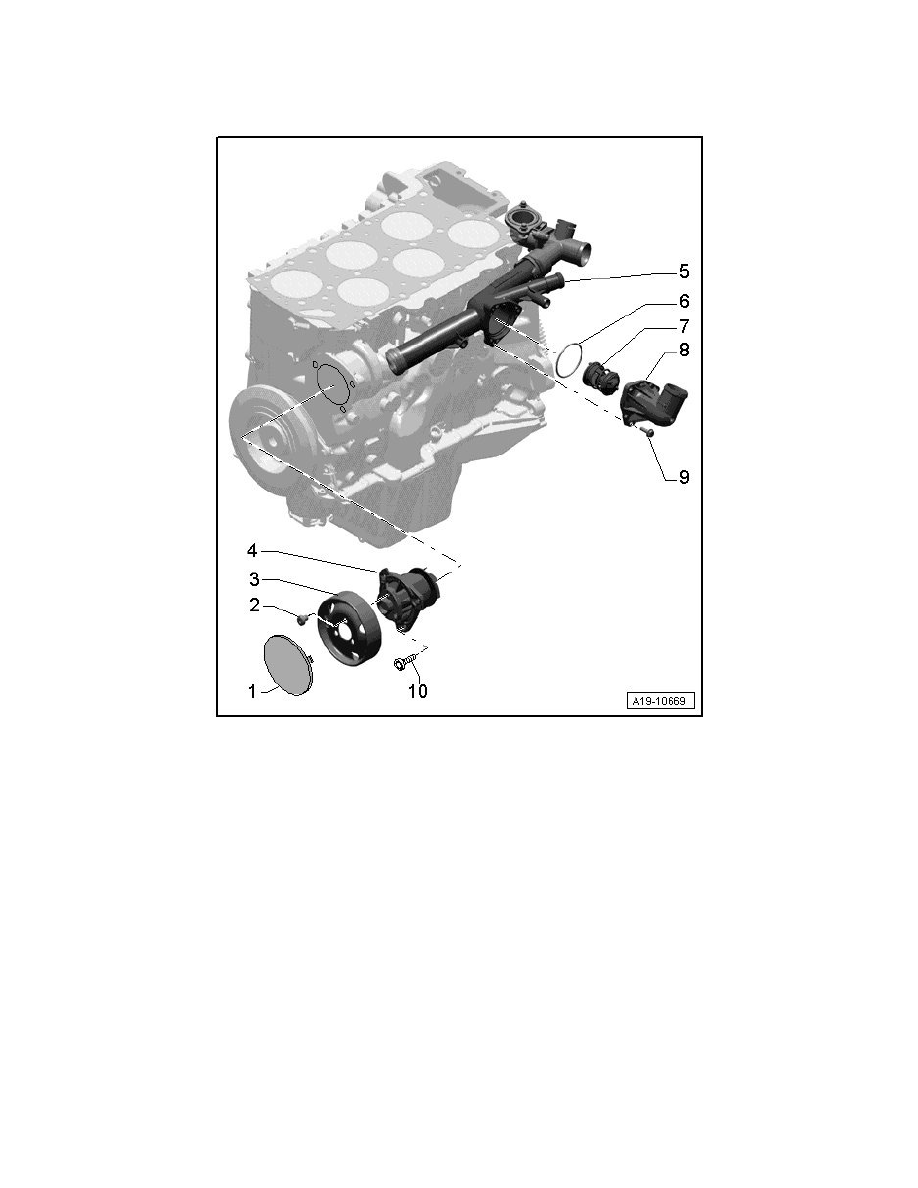

Coolant Pump and Thermostat, Assembly Overview

Coolant Pump and Thermostat, Assembly Overview

1

Cover cap

2

Bolt

‹› 20 Nm

3

Coolant pump pulley

4

Coolant pump

‹› Removing and installing => [ Coolant Pump ] See: Water Pump/Service and Repair/Coolant Pump.

‹› With seal

5

Coolant line, left

‹› Removing and installing => [ Left Coolant Pipe ] See: Coolant Line/Hose/Service and Repair/Left Coolant Pipe.

6

O-ring

‹› Replace

7

Coolant thermostat
