Q7 Quattro V6-3.6L (BHK) (2007)

Page 1
background image

Piston: Specifications

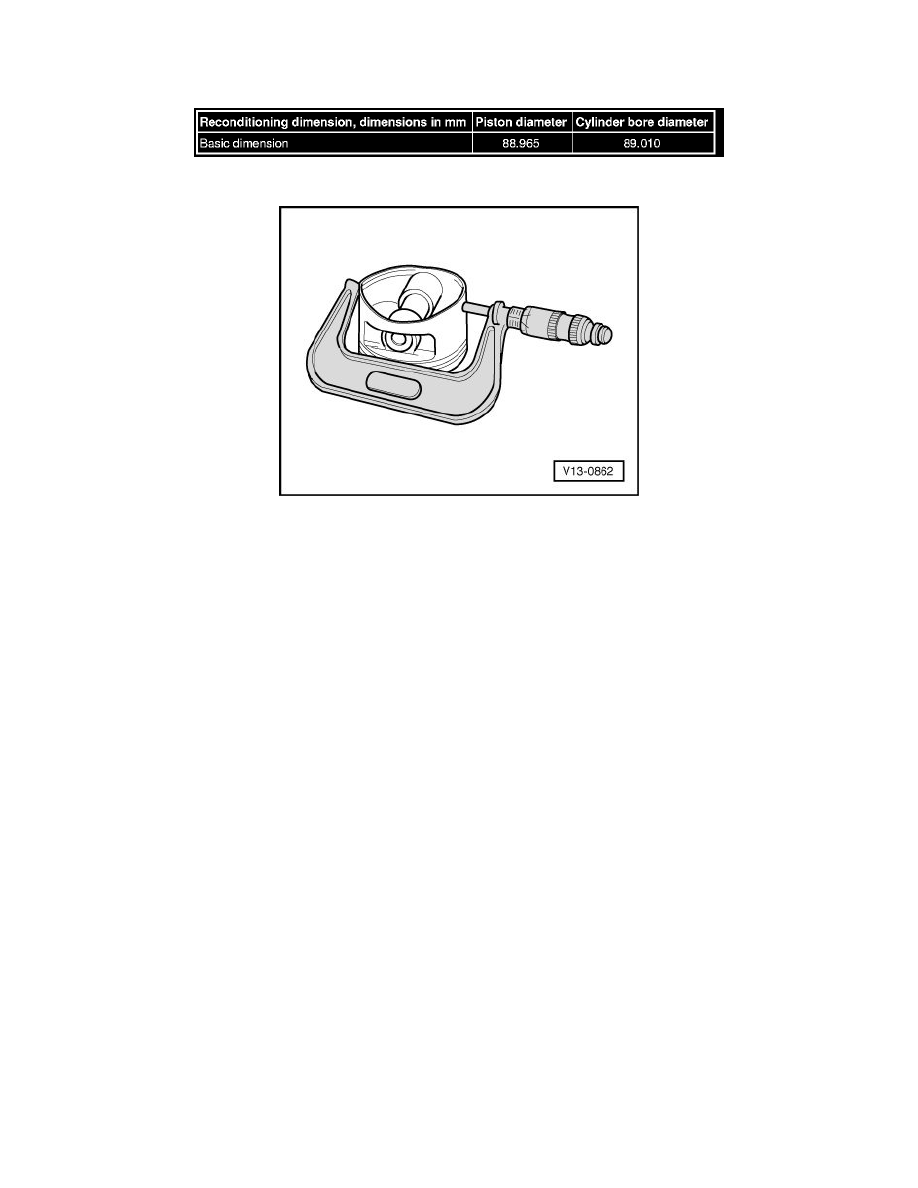

Piston and Cylinder Dimensions

Piston Inspection

Maximum deviation from nominal dimension ....................................................................................................................................................... 0.04 mm
