Oil Pan: Service and Repair

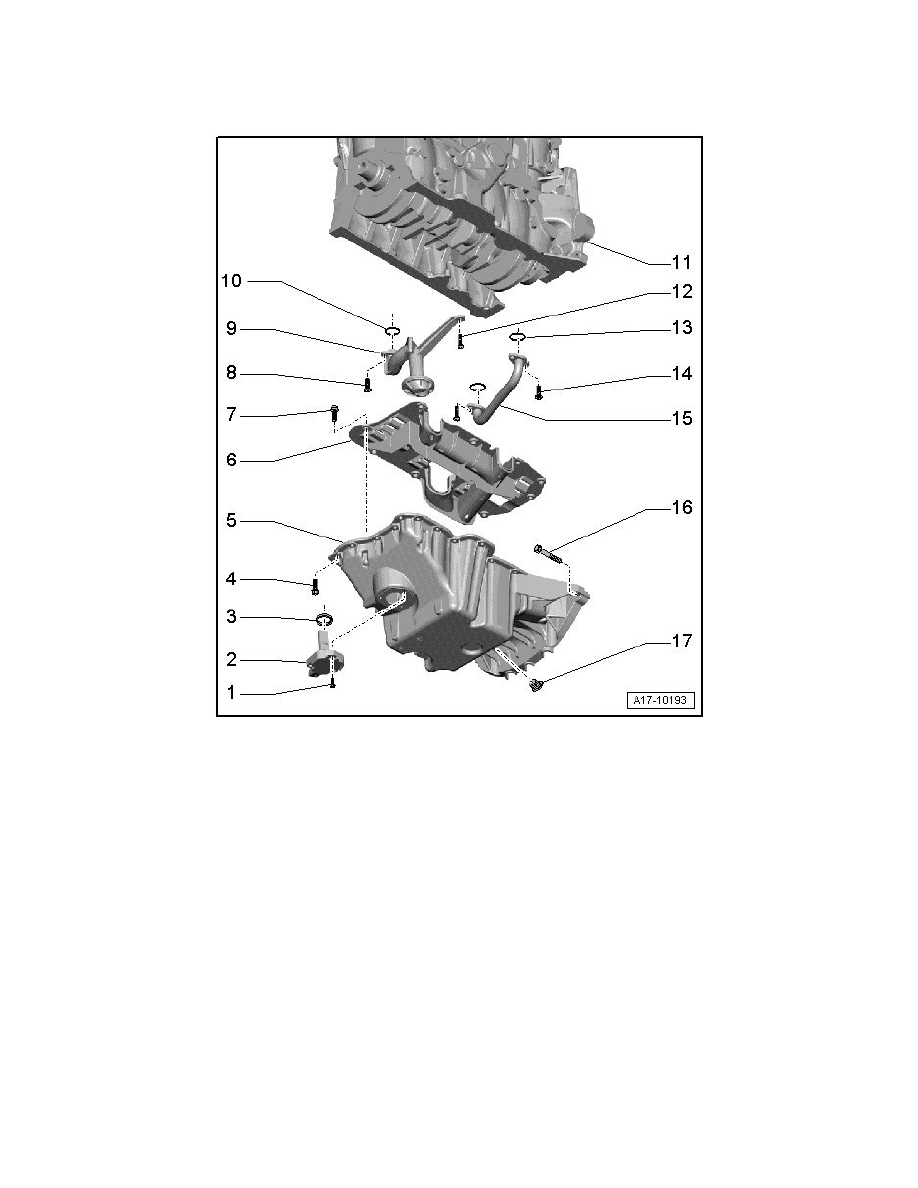

Oil Pan, Assembly Overview

Oil Pan, Assembly Overview

1

Bolt

‹› 8 Nm

2

Oil level thermal sensor (G266)

3

O-ring

‹› Replace

‹› Oil to install

4

Bolt

‹› Tightening sequence => [ Oil Pan Tightening Sequence ]

5

Oil pan

‹› Removing and installing => [ Oil Pan ] See: Oil Pan.

6

Oil baffle

7

Bolt
