Q7 Quattro V6-3.6L (BHK) (2007)
Compass: Testing and Inspection
New Digital Compass, Calibrating
New Digital Compass, Calibrating
-
Switch on ignition.

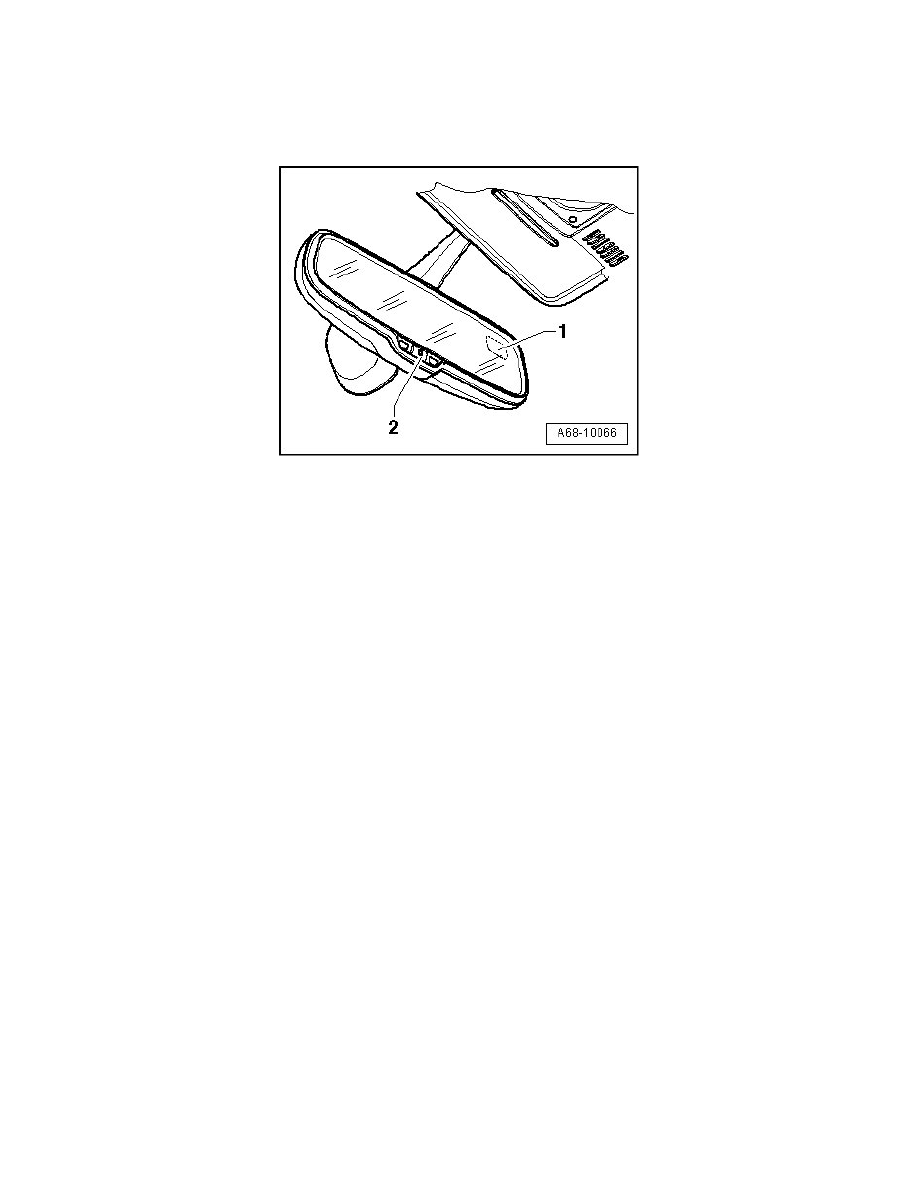

A "C" must appear in compass display - 1 -.
-
If "C" does not appear, press and hold button - 2 - at least 9 seconds until a "C" appears in compass display - 1 -.
-
Drive in a circle two to three times at about 5 mph (10 km/h) until a direction is shown in compass display - 1 -.
-
Leave ignition switched on.
-
Press and hold button - 2 - at least 6 seconds until " Z" and a zone number appears.
-
Press - 2 - button again until desired zone number appears.
-
Find desired zone on world map:
‹› North America
After a few seconds, compass display switches from zone number to direction.
-
Ensure the interior rearview mirror automatic dimming function is activated again after completing the calibration.
-
Switch off ignition.
