Vacuum Pump: Service and Repair

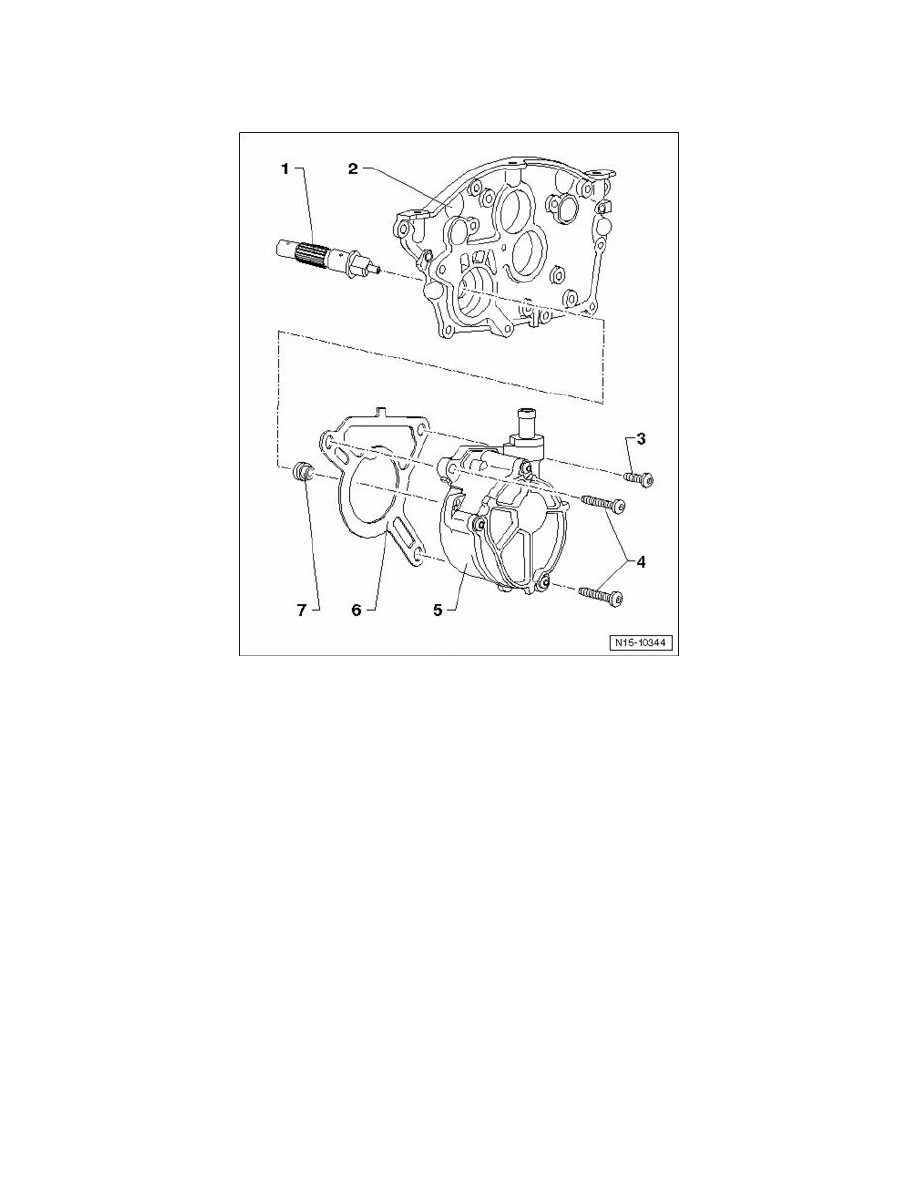

Mechanical Vacuum Pump, Assembly Overview

Mechanical vacuum pump, assembly overview

1 -

Input shaft

^

For mechanical vacuum pump

2 -

Upper timing chain cover

3 -

Bolt

^

Short

^

10 Nm

4 -

Bolt

^

Long

^

10 Nm

5 -

Mechanical vacuum pump

^

For vehicles from approximately 11.2006

6 -

Gasket

^

Replace

7 -

Seal

^

Installed location
