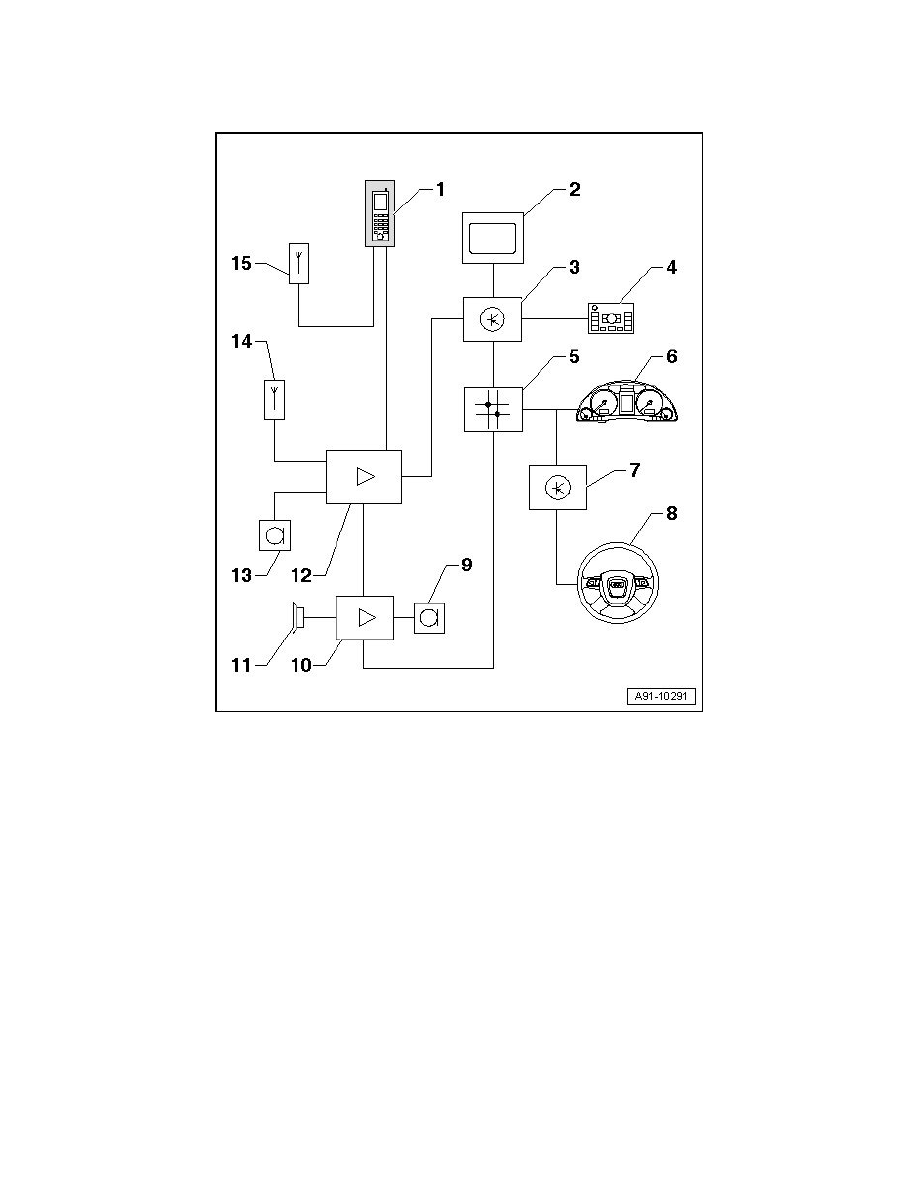

Entertainment System Control Module: Locations
Telephone System

Telephone System

10

Digital Sound System Control Module (J525) behind right luggage compartment side trim
