Q7 Quattro V6-3.6L (BHK) (2007)
-

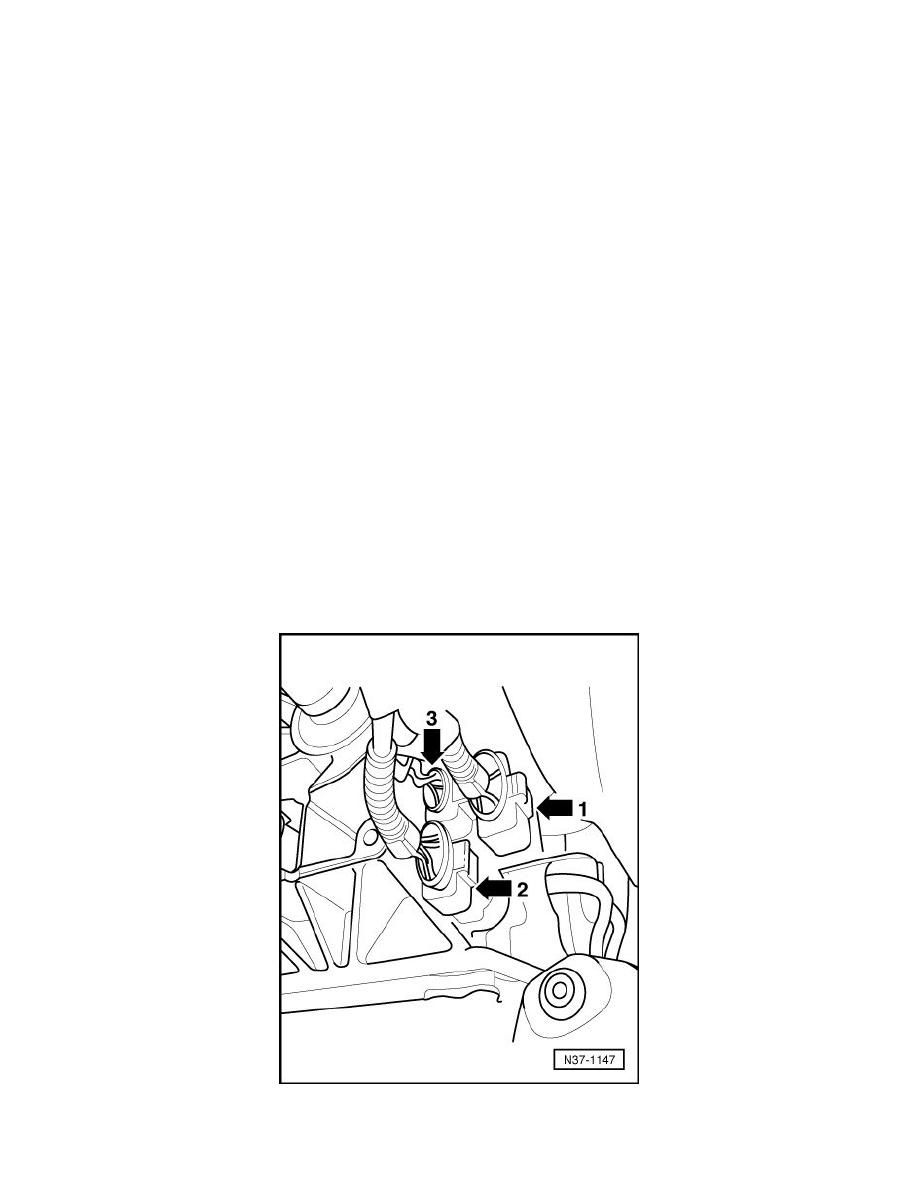

Using a multimeter, check the Solenoid Valve electrical harness connector terminals to the Transmission Control Module (TCM) (J217) electrical
harness connector T52 terminals for an open circuit.
Specified value: 1.5 ohms Max.
If the specified value was not obtained:
-
Check the wiring for a short circuit to each other, Battery (+), and Ground (GND).
-
If necessary, repair the faulty wiring connection.
If no malfunction is found in the wiring and the resistance was not OK:
-
Replace the faulty Solenoid Valve.
