Q7 Quattro V6-3.6L (BHK) (2007)
/Page-3674001.png)
Constant Velocity Joint: Testing and Inspection
Front Suspension
Outer CV Joint, Checking
-
Removing, refer to => [ Front Drive Axle, Servicing ] See: Service and Repair/Overhaul.
In order to replace grease in case of strong soiling, joint must be disassembled or if journal surface of balls must be checked for wear and damage.
Disassembling
-
Mark position of ball hub to ball cage and to housing before disassembling, using electro-writer or grindstone.
-

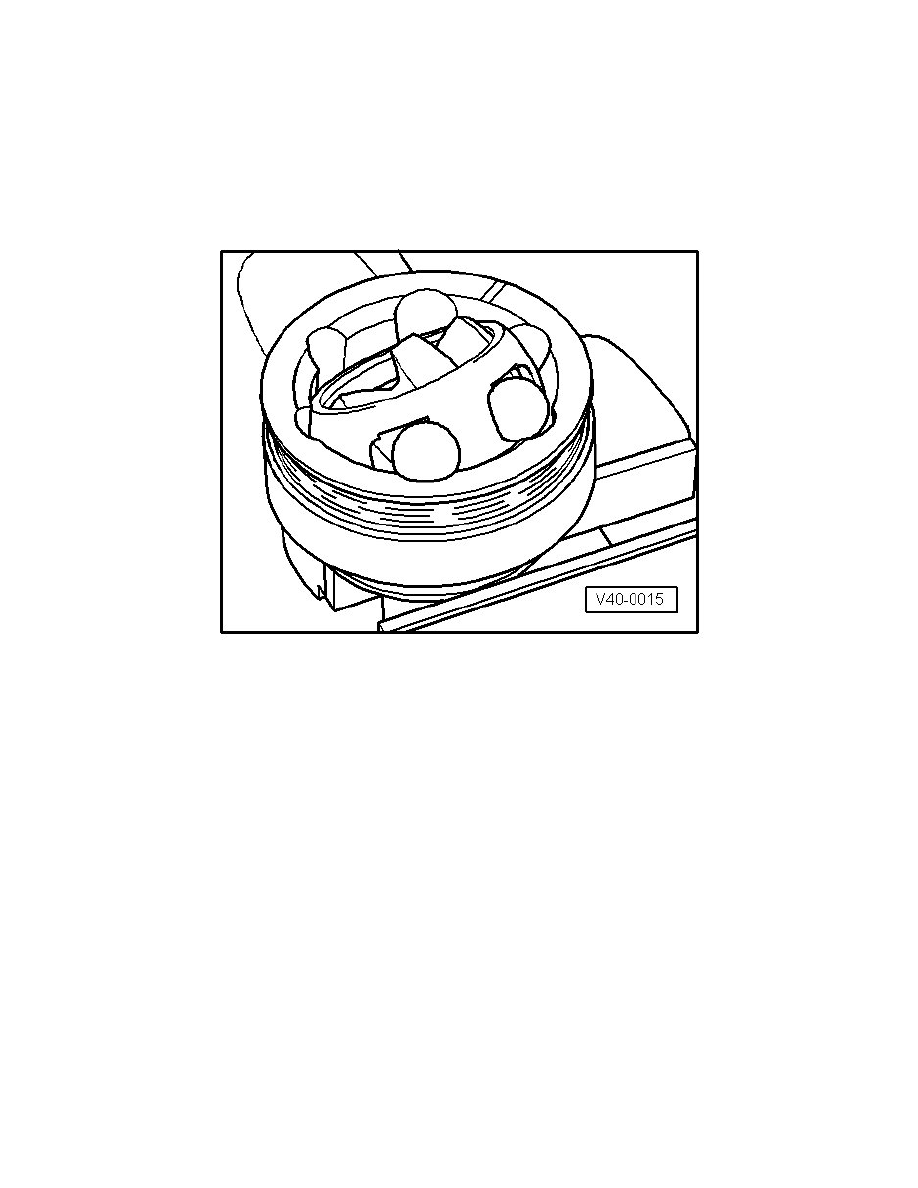

Swing ball hub and ball cage.
-
Remove balls in sequence.
-
Lift out cage with hub.
-
Swing segment of hub into window of cage.
