Q7 Quattro V6-3.6L (BHK) (2007)
/Page-3626001.png)
Differential Carrier Support: Service and Repair

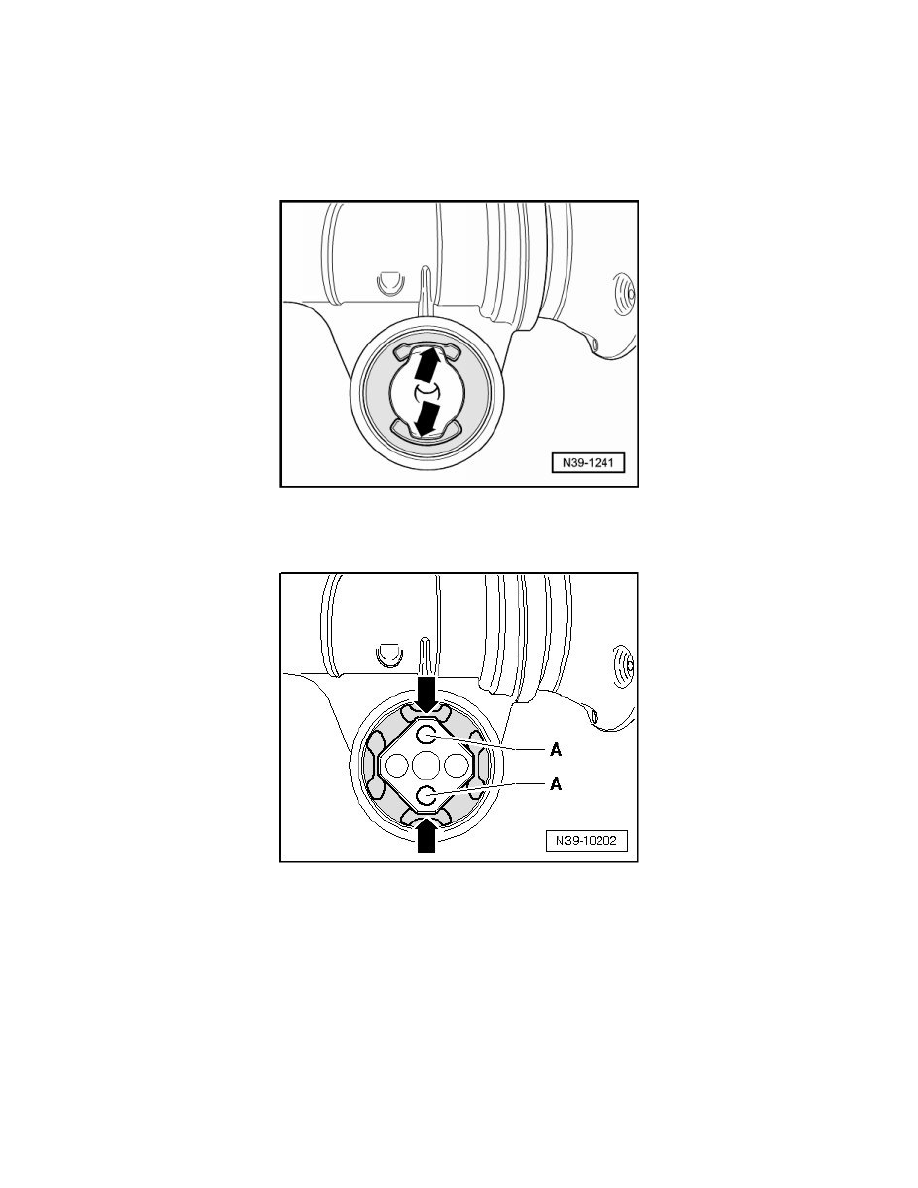

Installation Position of Bonded Rubber Bushing
Installation Position of Bonded Rubber Bushing
Bonded rubber bushings with 2 recesses
-
The recesses in the bushing must be vertical relative to final drive - arrows -.
Bonded rubber bushings with 4 recesses
The smaller recesses - arrows - and smaller holes - A - of bushings must be vertical relative to final drive.
