Q7 Quattro V6-3.6L (BHK) (2007)
Power Window Switch: Service and Repair
Window Regulator Switch (In RF Door) E107, Removing and Installing
Window Regulator Switch (in RF Door) E107, Removing And Installing
Removing
CAUTION:
-
Switch off all electrical consumers.
-
Switch ignition off and remove ignition key.
-

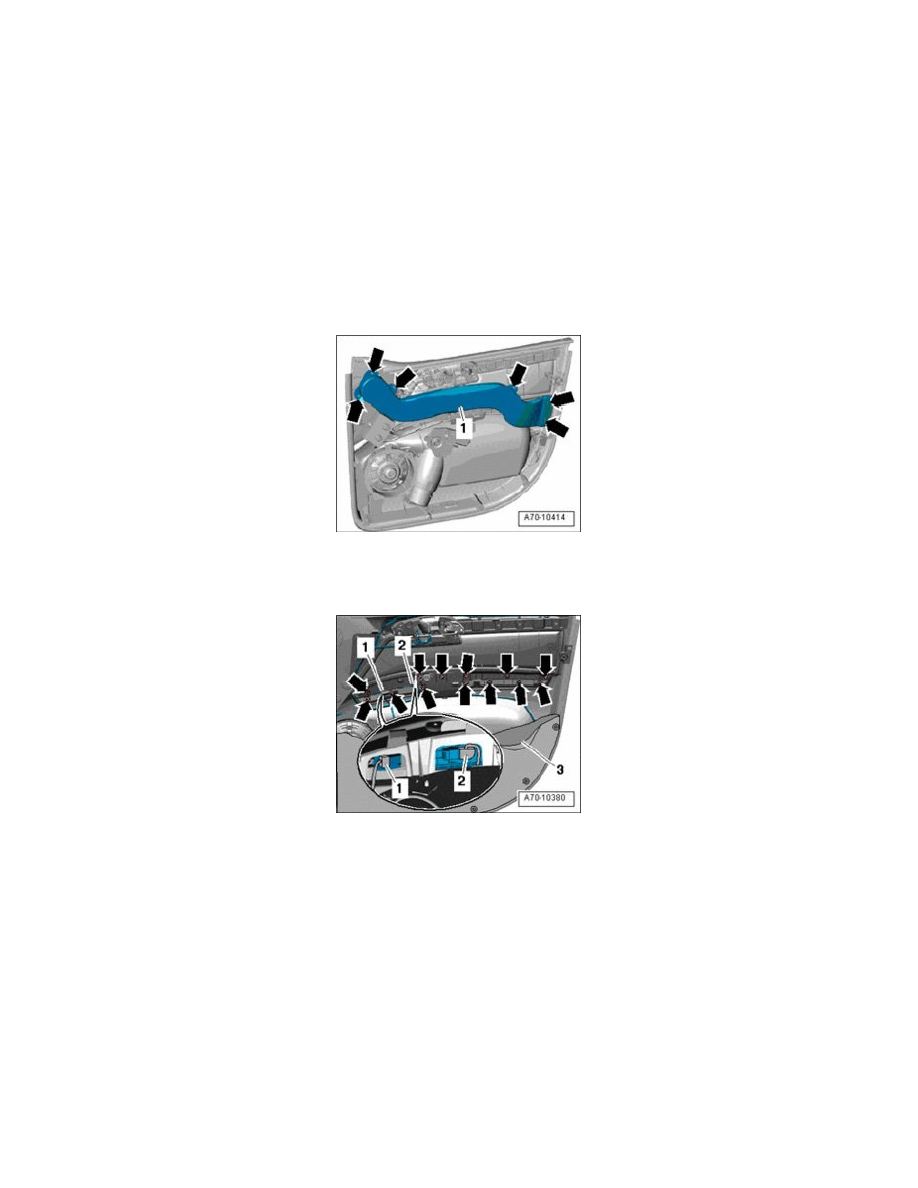

Remove front door trim.
-
Detach insulating mat from door trim.
-
Carefully release catches - arrows - using a small screwdriver.
-
Pull Window Regulator Switch (in RF door) E107 - item 2 - out of switch mount.
-
Disconnect connector - 1 -.
Installing
Install in reverse order, observing the following:
-
Press Window Regulator Switch (in RF door) E107 into switch mount until catches engage.
-
Install front door trim.
