Windshield Washer Reservoir: Service and Repair
Washer Fluid Reservoir

Washer Fluid Reservoir

Removing

-

Switch off ignition and remove ignition key.

-

Remove right front wheel.

-

Remove front right wheelhouse liner.

-

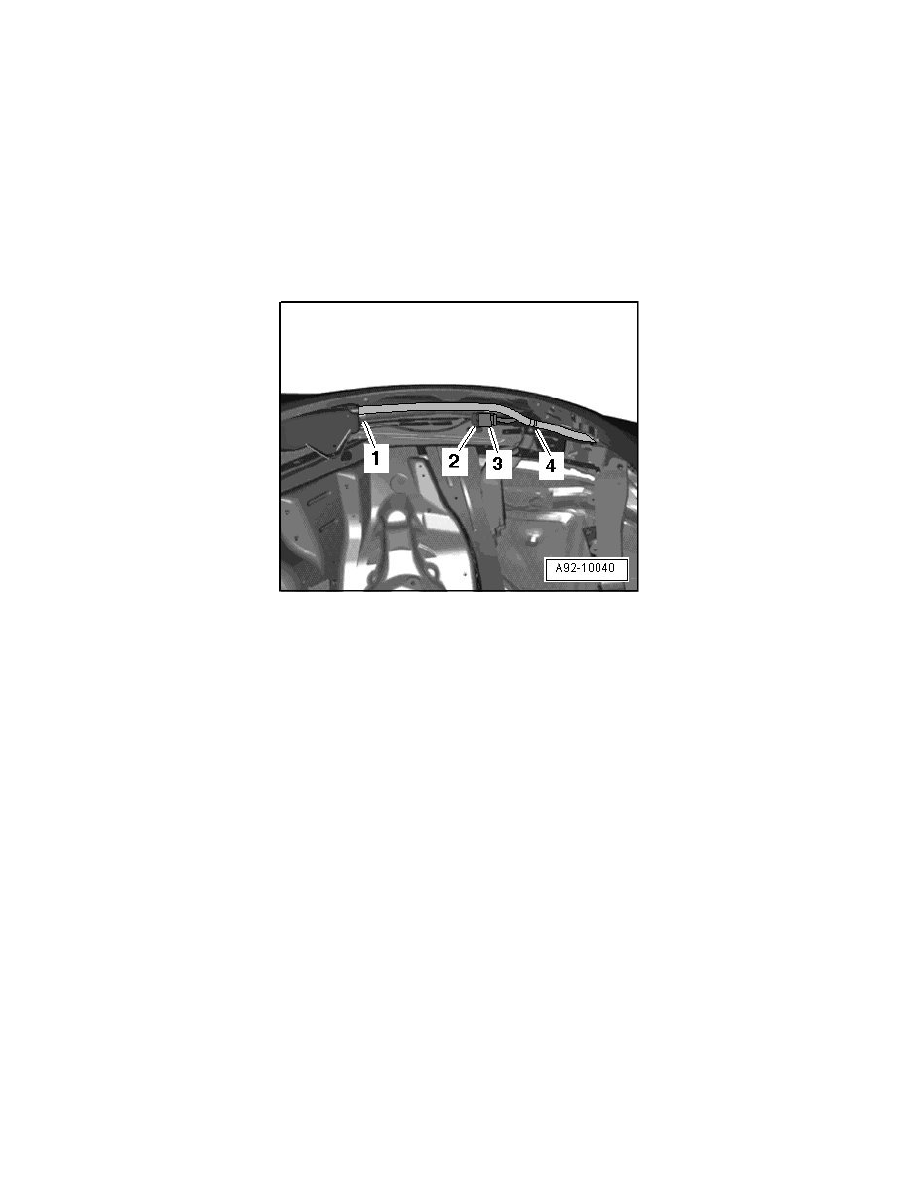

Remove filler tube filler hose - 1 - from washer fluid reservoir.

-

Disconnect electrical connector - 3 - on central connector.

-

Release catch and remove central connector - 2 - from bracket.

Vehicles with headlamp washer system:

-

Disconnect hose coupling - 4 - by pressing release button.

All Vehicles
