Q7 Quattro V8-4.2L (BAR) (2008)
Condenser HVAC: Service and Repair
Refrigerant Lines For Condenser
Refrigerant Lines For Condenser
NOTE: Condenser is available in different versions, depending on version of vehicle.
Removing
-
Discharge A/C refrigerant system.
-
If necessary, remove noise insulation and components which may obstruct access to the connections on condenser (depending on vehicle).
-

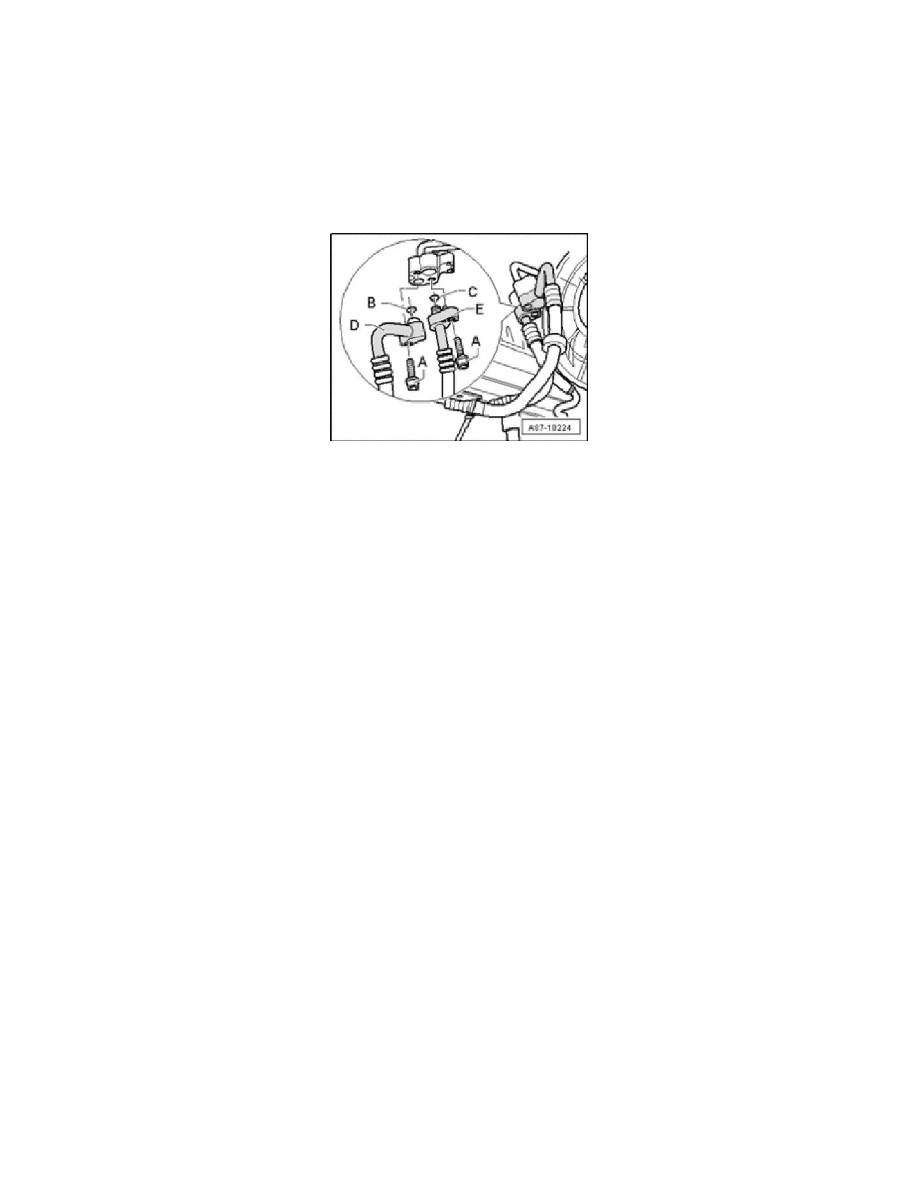

Remove bolts - A - (tightening torque 20 Nm).
-
Disconnect refrigerant lines - D - and - E - from condenser.
NOTE:
-
Close all open lines and connections on condenser with suitable caps (avoid dirt and moisture from entering the system).
-
Do not bend, kink or stretch lines or hoses as refrigerant lines and refrigerant hoses may be damaged.
Installing
Installation is the reverse of removal, noting the following:
-
Replace O-ring seals - B - and - C -.
NOTE: Coat O-ring seals lightly with refrigerant oil before installing.
-
Check positions of refrigerant lines, they must be fully engaged in bracket and cannot come in contact with other components.
-
Evacuate refrigerant circuit and recharge again.
