Q7 Quattro V8-4.2L (BAR) (2008)
/Page-2687001.png)
A/C Coupler O-ring: Service and Repair
O-Ring Seals For Refrigerant Circuit
-
Always use only once, replacing.
-
Lubricate with refrigerant oil before installing.
-
Ensure seal fits properly on pipe or notch.
-
Work in clean environment.
NOTE:
-
Install only O-rings that are resistant to refrigerant R134a and corresponding refrigerant oil. These O-ring seals are color-coded to avoid
mistakes (currently "red", "light purple" and "dark purple").
-

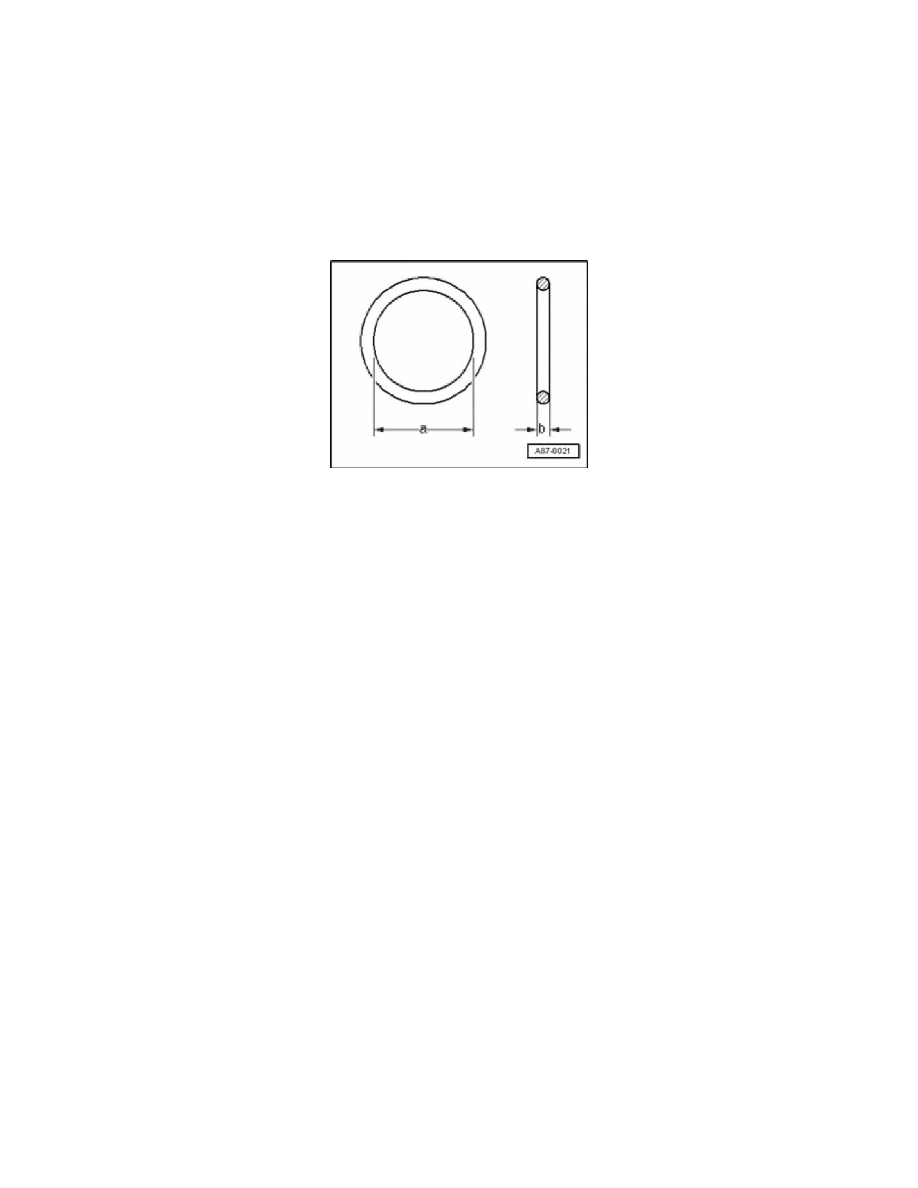

The O-ring dimensions - a - and - b - are different depending on installation location.
-
In addition to the color-coded O-rings, black O-rings are also used in production for certain connections.
