RS 4 Quattro Cabriolet V8-4.2L (BNS) (2008)
Convertible Top Position Sensor / Switch: Service and Repair
Convertible Top Frame Position Sensor
Convertible Top Frame Position Sensor
-

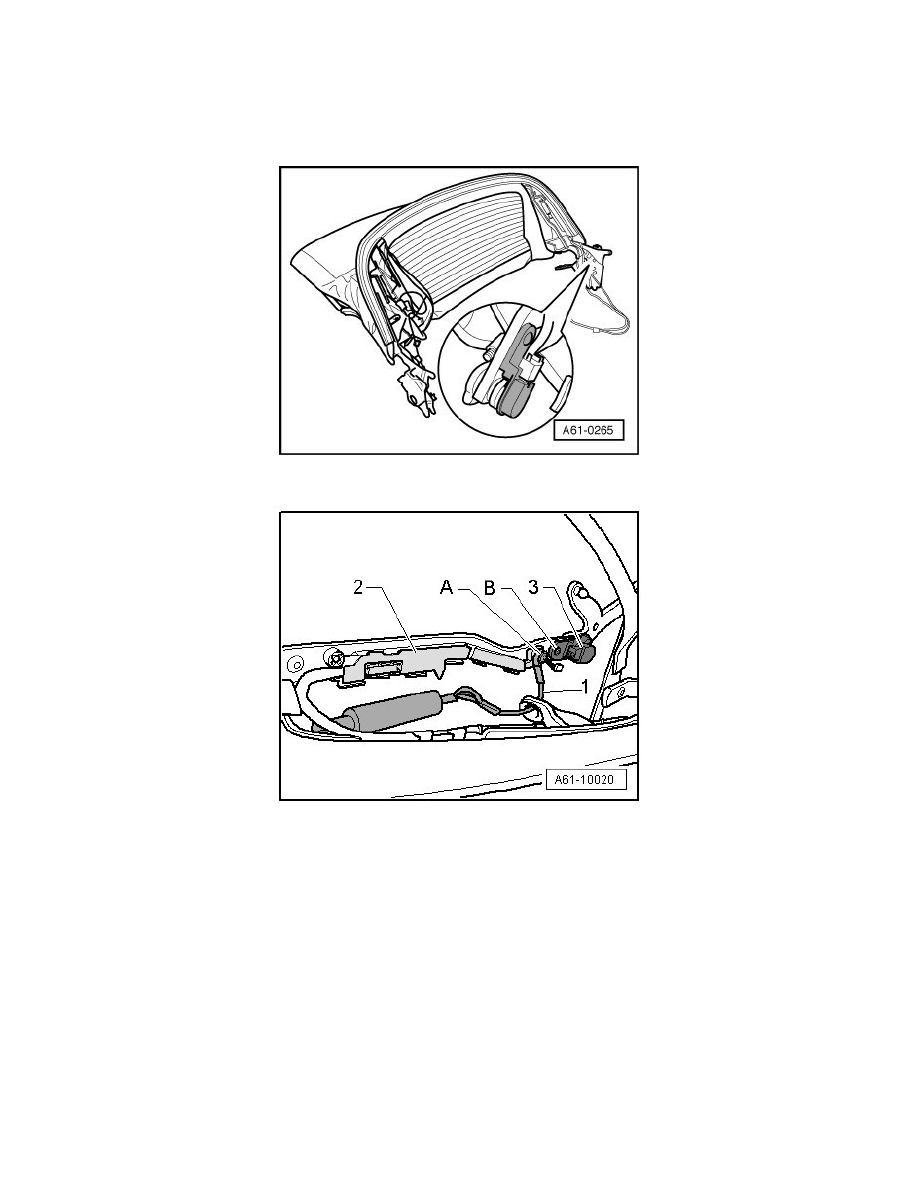

Bring convertible top into center position.
-
Disconnect electrical connector on Convertible Top Frame Position Sensor (G356) - 3 -.
-
Remove bolt - B - and carefully remove sensor - 3 - from its mounting opening.
Installation is reverse of removal.
‹› When installing, ensure sensor slides over convertible top linkage synchronization pins.
Tightening torque => See: Body and Frame/Roof and Associated Components/Convertible Top/Service and Repair/Removal and
Replacement/Convertible Top Electrical Components Assembly Overview
