Roll Bar: Service and Repair

Rollover Protection

=> [ Rollover Protection ]

=> [ Rollover Protection Impact Bar ]

Rollover Protection

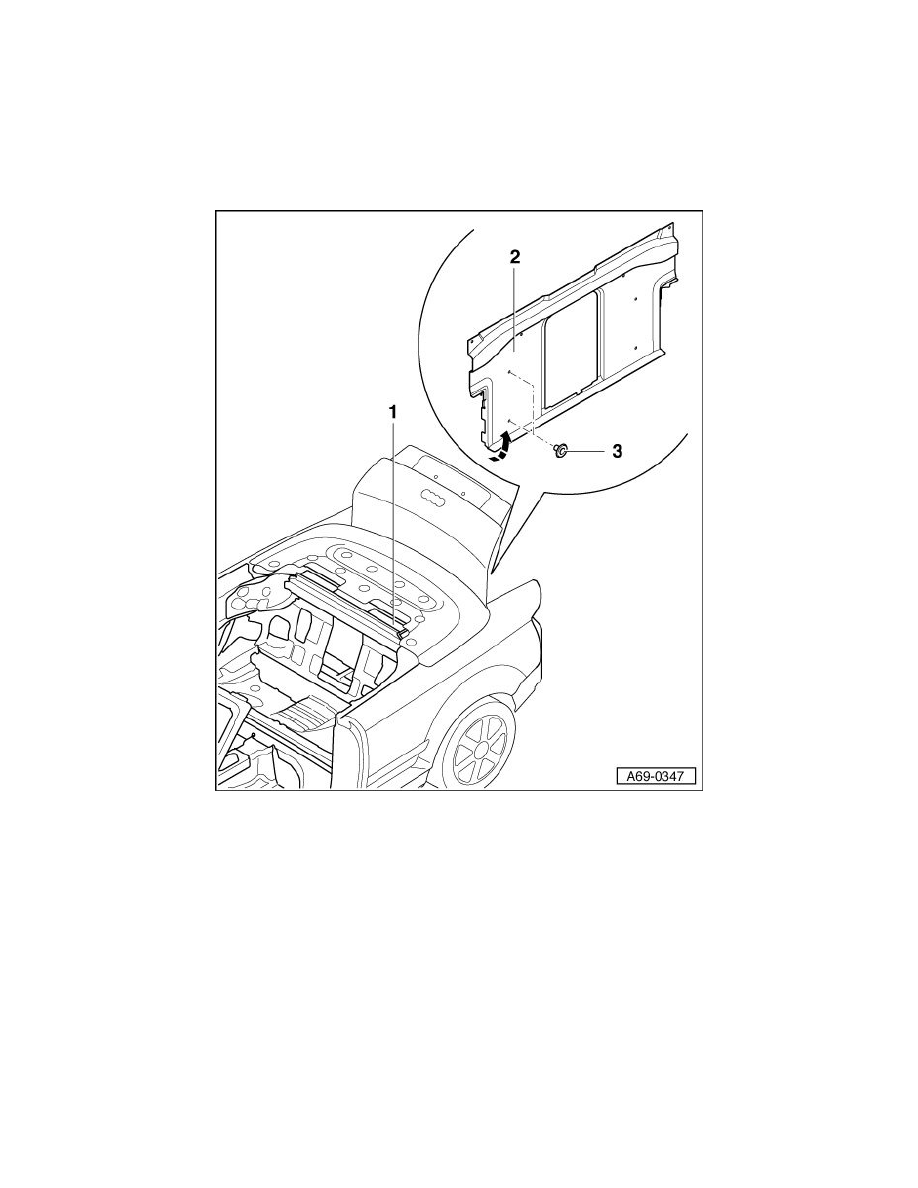

1 - Rollover Protection

‹› Removing

CAUTION!
Note the safety precautions for the roll-over protection. Refer to => [ Rollover Protection Safety Precautions ] See: Restraint Systems/Air
Bag Systems/Air Bag/Service Precautions/Airbag Safety Precautions.

-

Remove the rear bench seat. Refer to => [ Rear Bench Seat ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats.

-

Remove rear seat backrest. Refer to => [ Rear Seat Backrest ] See: Seats/Service and Repair/Removal and Replacement/Rear Seats.

-

Remove the pass-through trim. Refer to => [ Ski Sack Trim ] See: Seats/Service and Repair/Overhaul/Seats - Upholstery, Covers/Rear Seat Covers
and Cushion.

-

Close the convertible top and fold the convertible top compartment up.

-

Remove the clips - 3 - (Qty. 2) on the rear panel trim - 2 -.

-

Fold the rear panel trim - 2 - in direction of arrow to the side.
