Cowl: Service and Repair

51 58 50 00 Plenum Chamber - Renewal

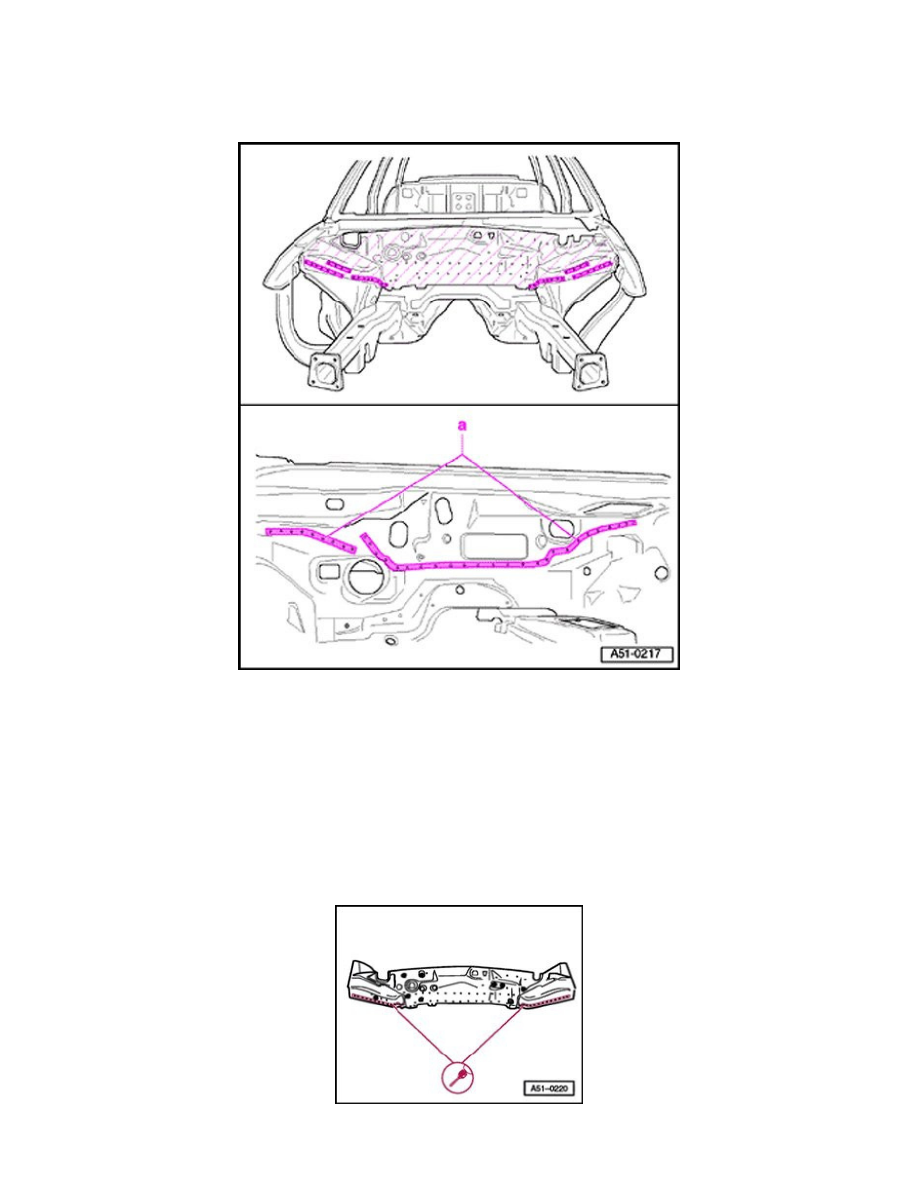

Cutting Locations

-

Cut-out reinforcement for wheel housing

-

Separate original joint.

-

Drill out spot welds - a - from inside.

-

Drill additional holes for SG plug weld seam.

-

Take off part.

-

Remove adhesive remains with knife and scraper.

Replacement parts

-

Plenum chamber

-

Reinforcing plate

Preparing new part

-

Drill 7 mm holes for SG plug weld seam.
