Variable Induction Position Sensor|Testing and Inspection > < How to Find Wiring Diagrams|Page 3011

S6 Quattro Sedan V10-5.2L (BXA) (2007)

Page 1
background image

Variable Induction Position Sensor: Locations

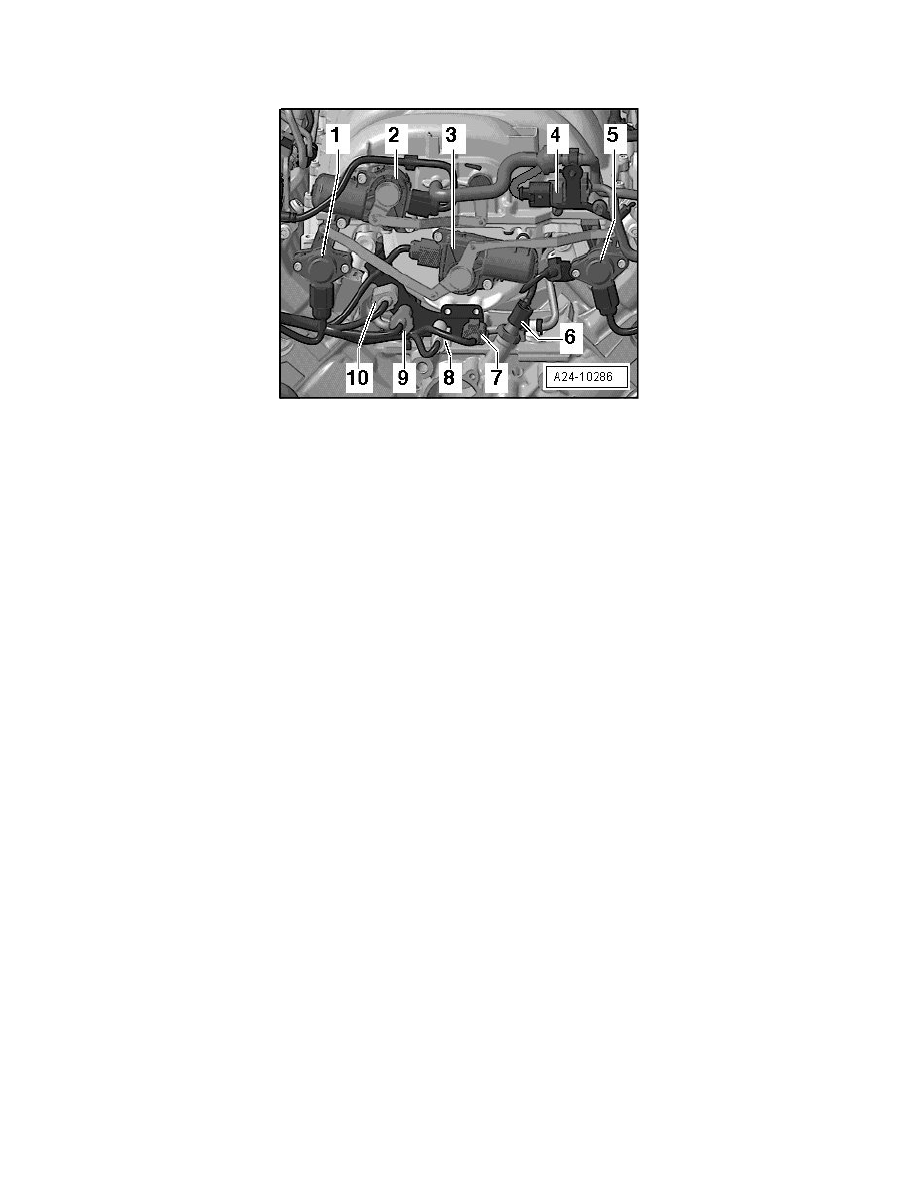

Engine viewed from front

1

Intake Manifold Runner Position Sensor (G336)

5

Intake Manifold Runner Position Sensor 2 (G512)
