S6 Wagon L5-2226cc 2.22L DOHC Turbo (AAN) (1995)
Closed Throttle Position Switch: Testing and Inspection
Note: The Closed Throttle Position (CTP) switch is located in the Throttle Position (TP) sensor housing.
Requirement
^
Accelerator pedal cable adjustment OK
Function Test with VAG 1551
-
Connect VAG 1551 scan tool. Refer to Connecting and Operating VAG 1551 Scan Tool See: Computers and Control Systems/Testing and
Inspection/Scan Tool Testing and Procedures/Scan Tool Testing/Scan Tool Connecting and Initial Checks/Connecting and Operating VAG
1551 Scan Tool
-
Select "Read measuring value block" function 08 using VAG 1551 Scan Tool.
-
Input display group number 04.
-
Observe display values in channel 4, while performing the following:
-
Apply Accelerator Pedal slightly (a few millimeters). Two digits of the 5-digit display number, must change:
^
3rd digit: changes from 0 to 1
^
4th digit: changes from 1 to 0
If value changes (but only after additional pedal travel):
-
Adjust CTP switch.
If display does NOT change:
-
Check CTP switch and wiring connections.
If digits have already changed prior to accelerator pedal application:
^
3rd digit already changed to 1
^
4th digit already changed to 0
-
Adjust CTP switch.
If after adjusting, fault is still present:
-
Check CTP switch and wiring connection.
Electrical Check
-
Disconnect Throttle Position (TP) sensor connector.
-
Set Digital Volt Ohm Multimeter (DVOM) to resistance range.
Throttle Switch/Sensor Terminals
-
Connect DVOM between terminals 4 and 6 using VW 1594 connector test kit.
^
Resistance must be 0 ohms (continuity).
-
Open throttle valves slightly.
^
Resistance must be infinite ohms (open).
If specified value is NOT obtained (or is obtained only after opening valves farther):
-
Adjust CTP switch.
If specified value is still NOT obtained after adjusting CTP switch:
-
Replace TP sensor.

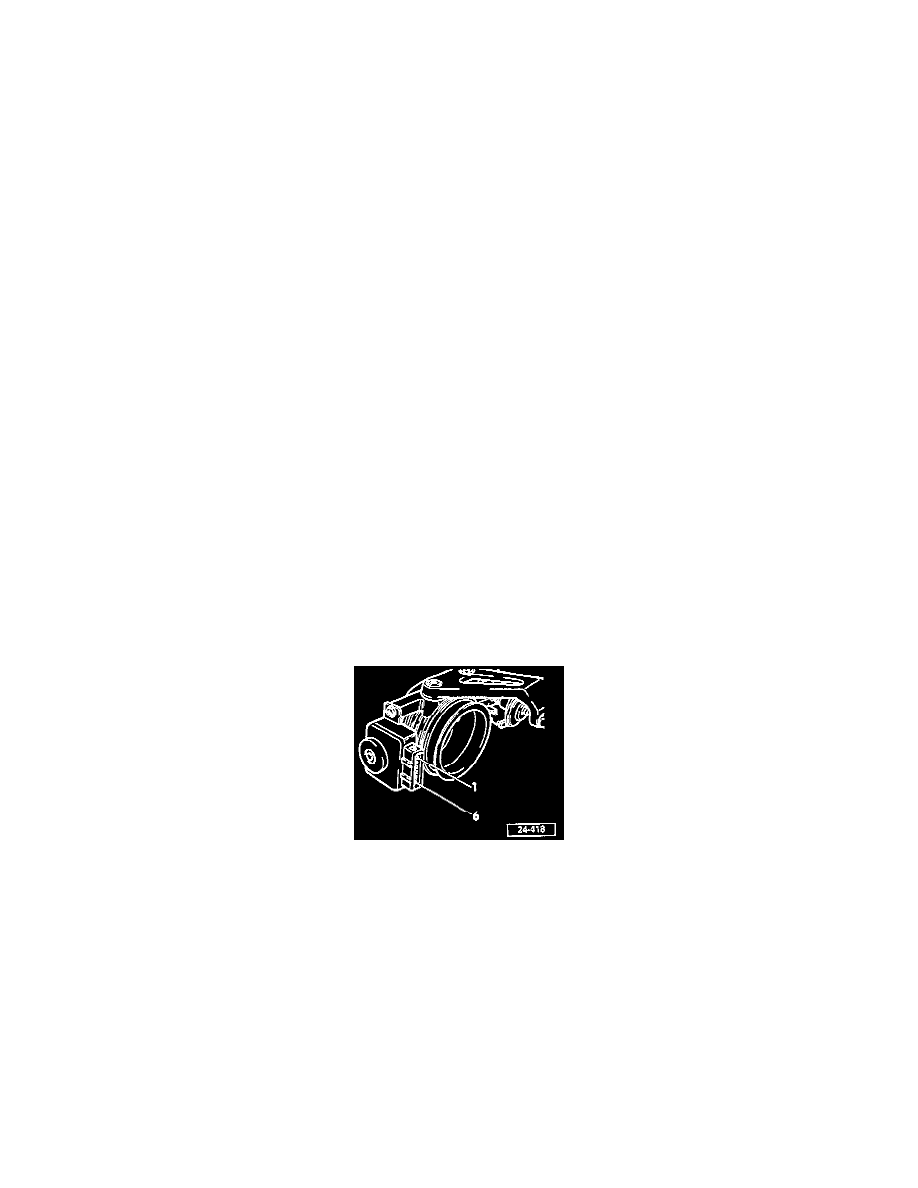

Adjusting
Note: Adjusting the CTP switch automatically adjusts the TP sensor.
