S8 Quattro Sedan V10-5.2L (BSM) (2009)
-

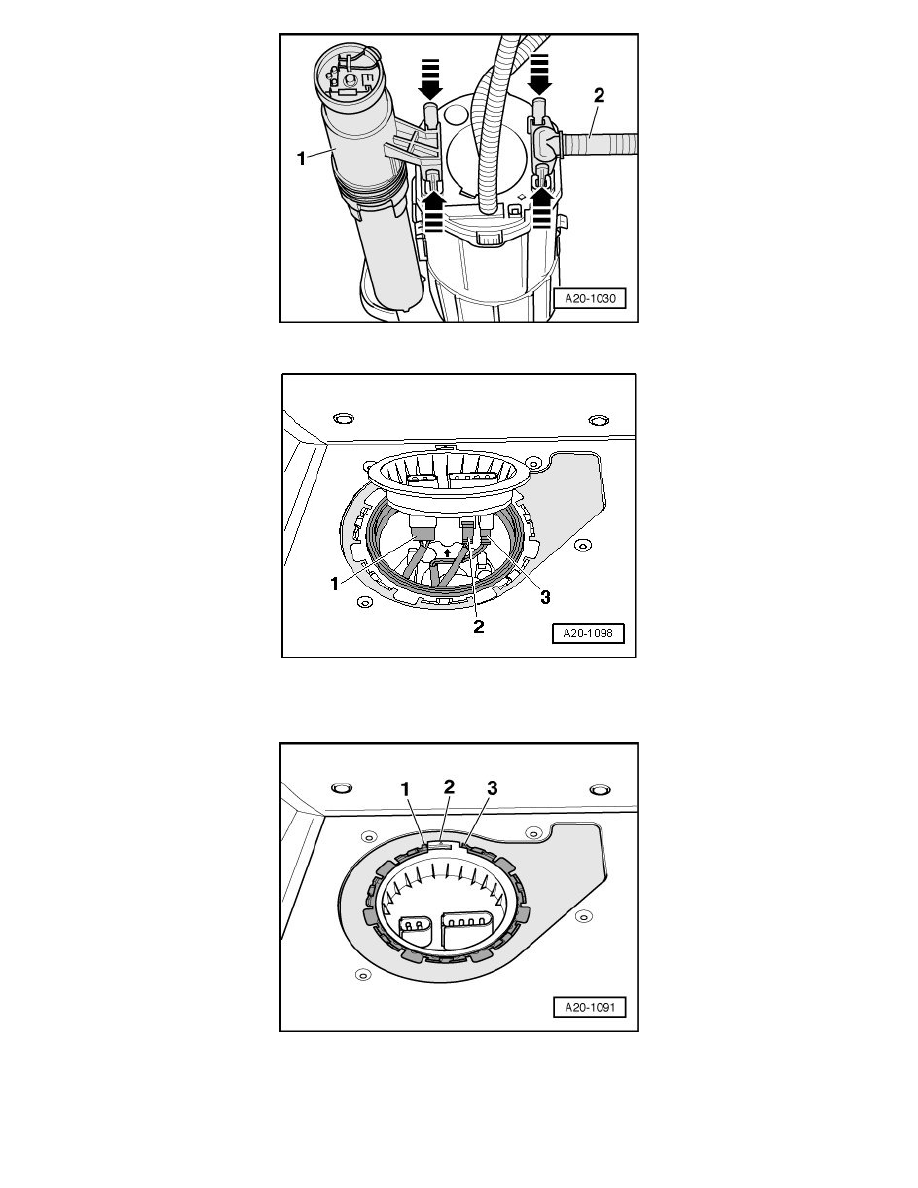

Connect the electrical connectors - 1 to 3 - on the underside of the left locking flange.
-
Install the new locking flange seal dry.
-
Insert locking flange in fuel tank, note installation position:
‹› The tab - 2 - on locking flange must lie between tabs - 1 - and - 3 - on fuel tank.
-
Tighten locking ring.
