TT L4-1.8L Turbo (BEA) (2004)
Compass: Testing and Inspection
Calibration Of Rearview Mirror With Compass (USA Only)

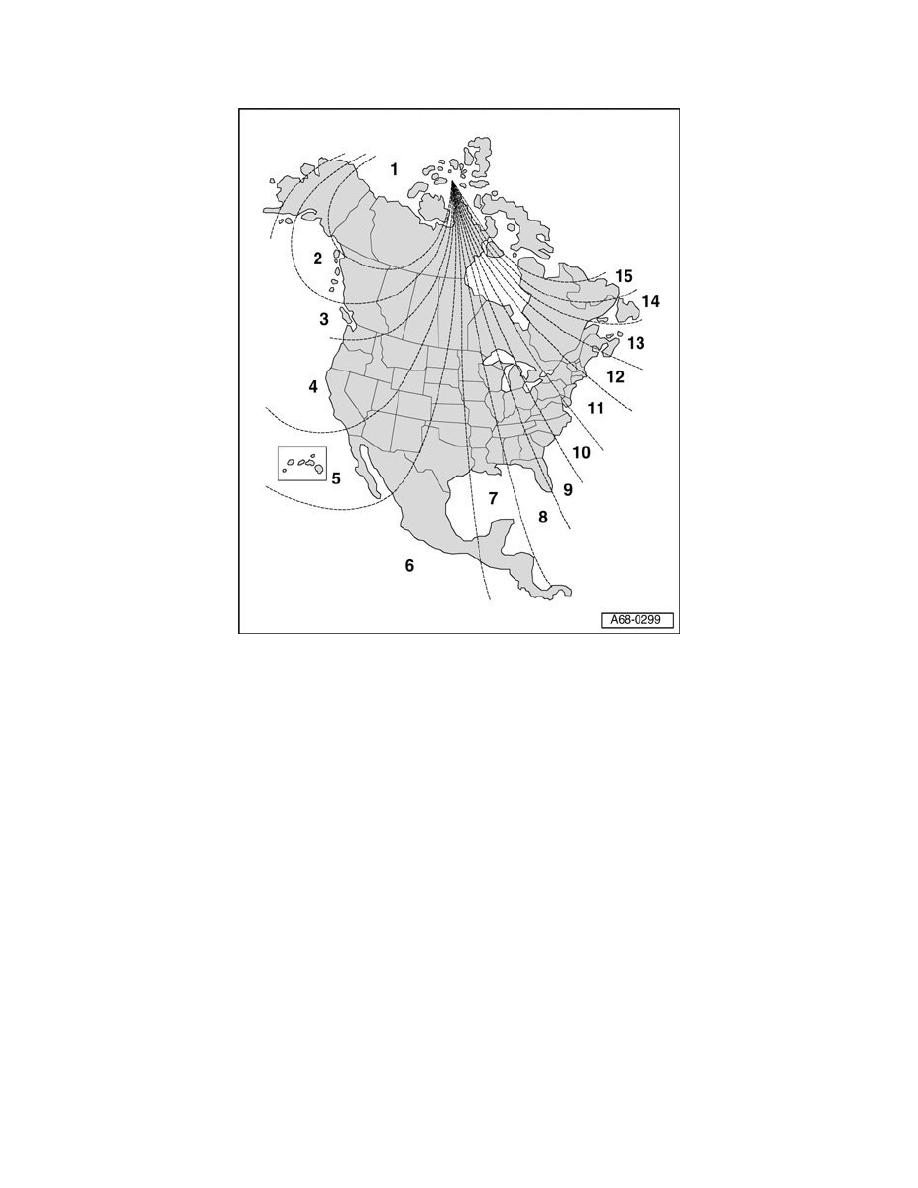

Setting of North is integrated in rearview mirror via a world-zone dependent magnetic field.
The compass directions N, NE, E, SE, S, SW, W and NW are shown in the digital display.
A new rearview mirror, or a rearview mirror which has had no current for a long period of time, must be calibrated anew (nothing or a "C"appears in
display).
Calibration of a new compass
-
Switch ignition on.
-
"C" must appear on display.
-
If there is no "C", press adjustment switch on underside of mirror using a thin object (e.g. pencil) until "C"appears in display.
