TT Coupe L4-1.8L Turbo (AWP) (2005)
/Page-2246001.png)
Air Register: Service and Repair
Damaged Instrument Panel Vents, Removing and Installing
Damaged Instrument Panel Vents, Removing And Installing
-

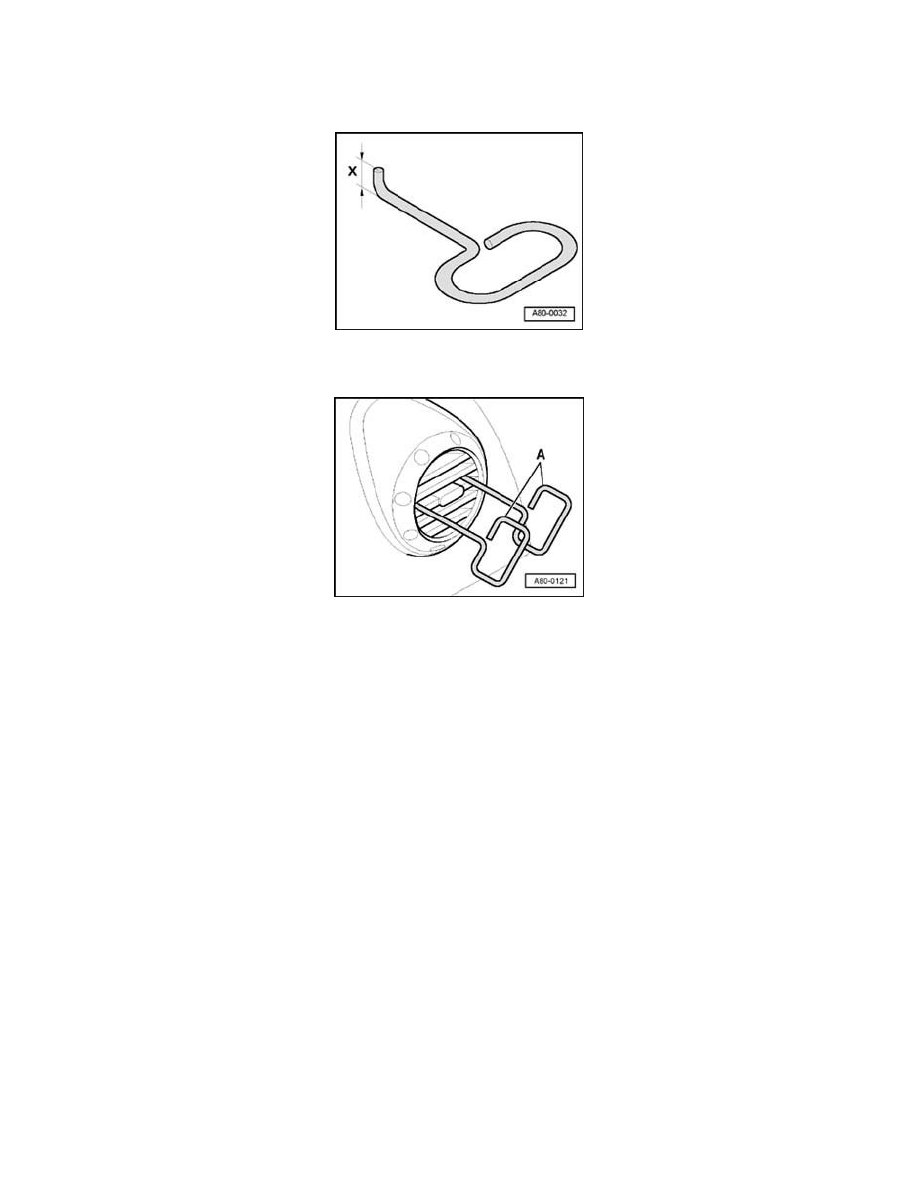

Bend a piece of wire (3 mm diameter) as shown.
-
Distance x = 6 mm.
-
Insert both hooks -A- into vent as illustrated and pull evenly on both tools to remove vent.
NOTE: To remove undamaged vents that will later be re-installed, press the vent out of the instrument panel from behind. Do not use hooks -A-
as these could damage the vent.
