TT Quattro Coupe L4-1.8L Turbo (AMU) (2001)
/Page-485001.png)
Variable Valve Timing Actuator: Customer Interest
Engine - Oil Leaks From Upper Engine Areas
15 Oil leaks from upper engine areas, diagnostic guidelines
15 10 05
2010877/8
7/7/2010
Supersedes Technical Service Bulletin Group 15 number 10-02 dated June 2, 2010 for reasons listed below.

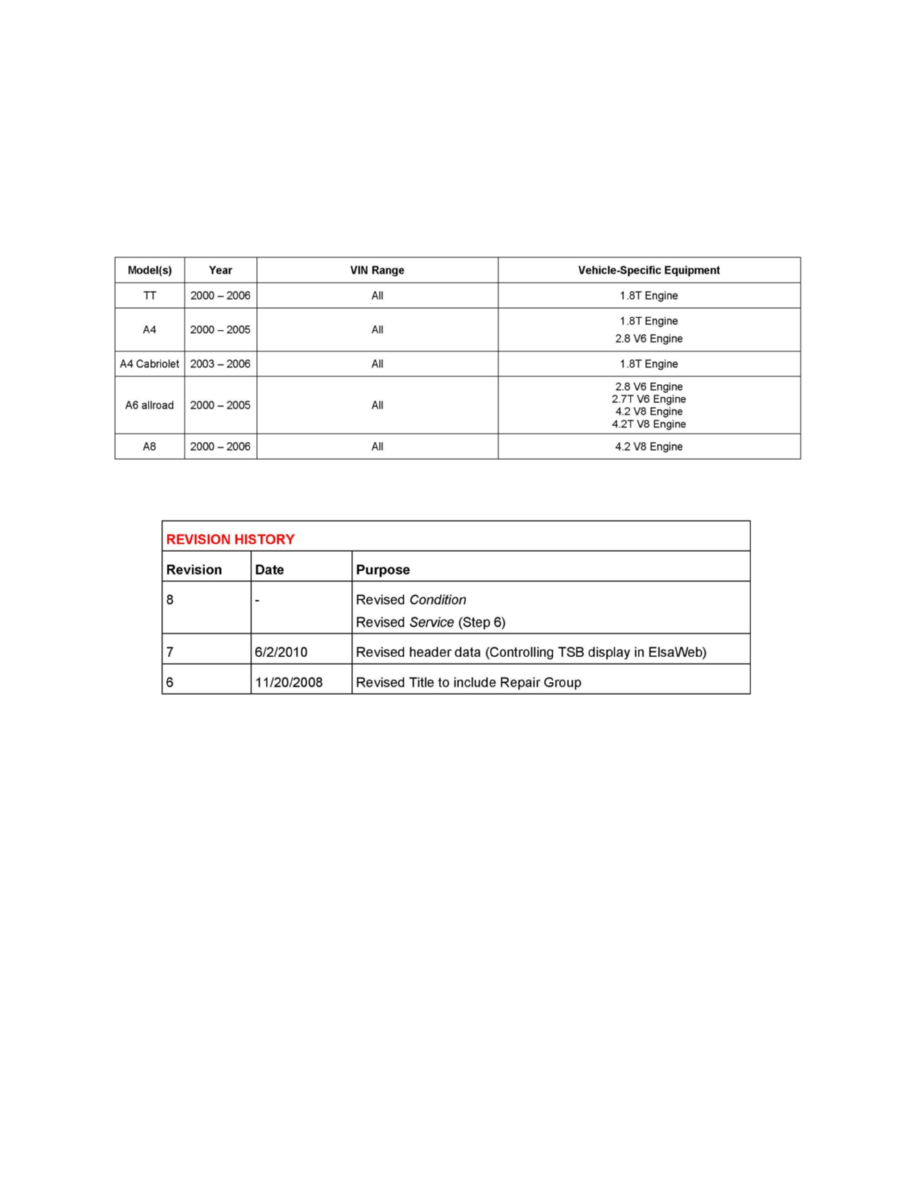

Affected Vehicles
Condition
This TSB applies only to oil leaks from the engine.
Technical Background
Not applicable.
Production Solution
Not applicable.
Service
1. Visually inspect area of suspected oil leak.
2. Classify suspected oil leak (Category 1, 2, or 3) according to table included in Audi Warranty Policies and Procedures Manual. (See "Categorization
of Leaks" table below.)
