TT Quattro Coupe L4-1.8L Turbo (AMU) (2001)
/Page-1926001.png)
Air Door Actuator / Motor: Locations
A/C Components, Passenger Compartment
NOTE:
-
Upon completion of any A/C system repairs, always check and and erase the Diagnostic Trouble Code (DTC) memory (scan tool function 02),
perform basic setting (function 04) and code the A/C control head -E87- (function 07).
-
All components marked with an asterisk (*) are activated during output Diagnostic Test Mode (DTM) (function 03).
-
Note different coding possibilities for A/C control head -E87-.
-
Electrical testing can be performed on all components marked with a double asterisk (**).

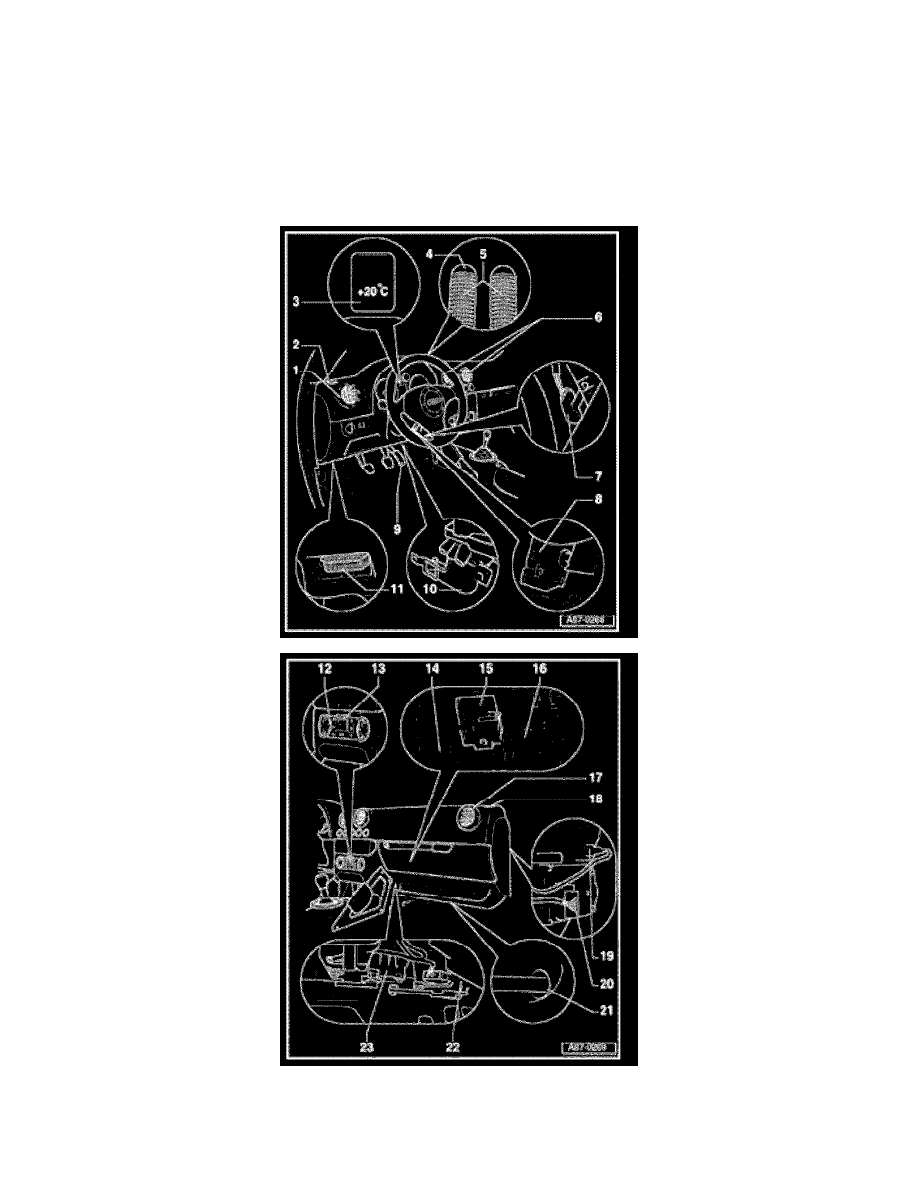

1
-
Instrument panel vent, left
2
-
Side window defroster vent
3
-
Outside air temperature display -G106- *
-
Outside temperature displayed in °C or in °F depending A/C control head -E87- setting.
