TT Quattro Coupe L4-1.8L Turbo (AMU) (2001)
/Page-1006.png)
-

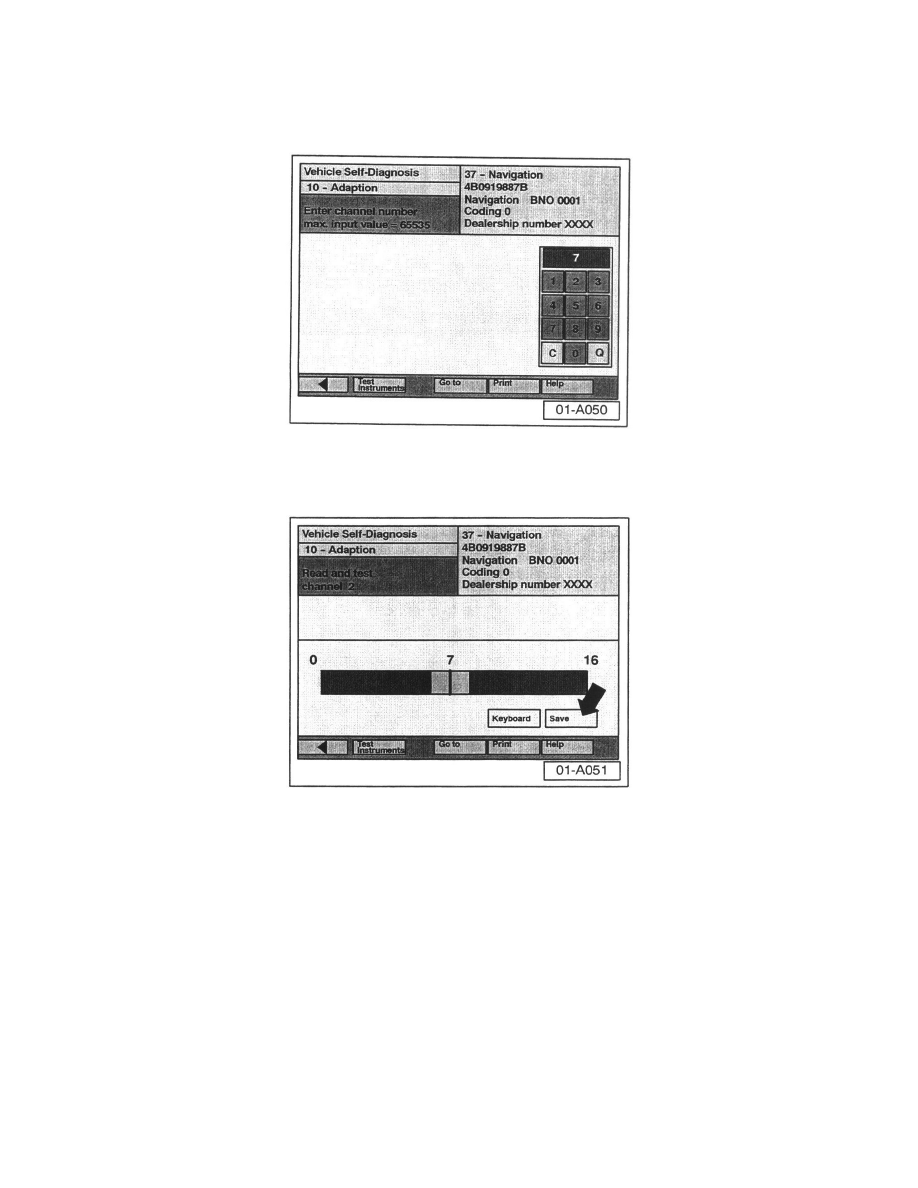

Press back arrow, then repeat step above to check adaptation values for channels 4 and 5, and identify any incorrect values.
If value is incorrect:
-
Press keyboard (arrow).
-
Input correct pulse number per wheel rotation according to adaptation table for the specific model (See Repair Manual).
-
Press "Q" on keypad to confirm.
-
Bar graph shows new pulse number per wheel rotation.
-
Press back arrow.
Channels 4 and 5, checking adaptation values
-
Repeat above steps to verify and change adaptation values for channels 4 and 5, if necessary, until incorrect value is found.
When all adaptation values have been checked and/or corrected:
-
Select "Go to" on navigation bar, then select "Exit".
-
Switch ignition OFF.
-
Remove VAS 5051 Diagnostic tool.
Note:
Audi TT models, also see Technical Bulletin Group 91, Number 00-09 dated Dec. 5, 2000.
