Navigation Module: Service and Repair
Control Module For Navigation With CD- Mechanism -J401- (coupe), Removing And Installing
The control module for navigation is located at rear left in the luggage compartment.
Removing
-
Remove left luggage compartment trim to side.
-

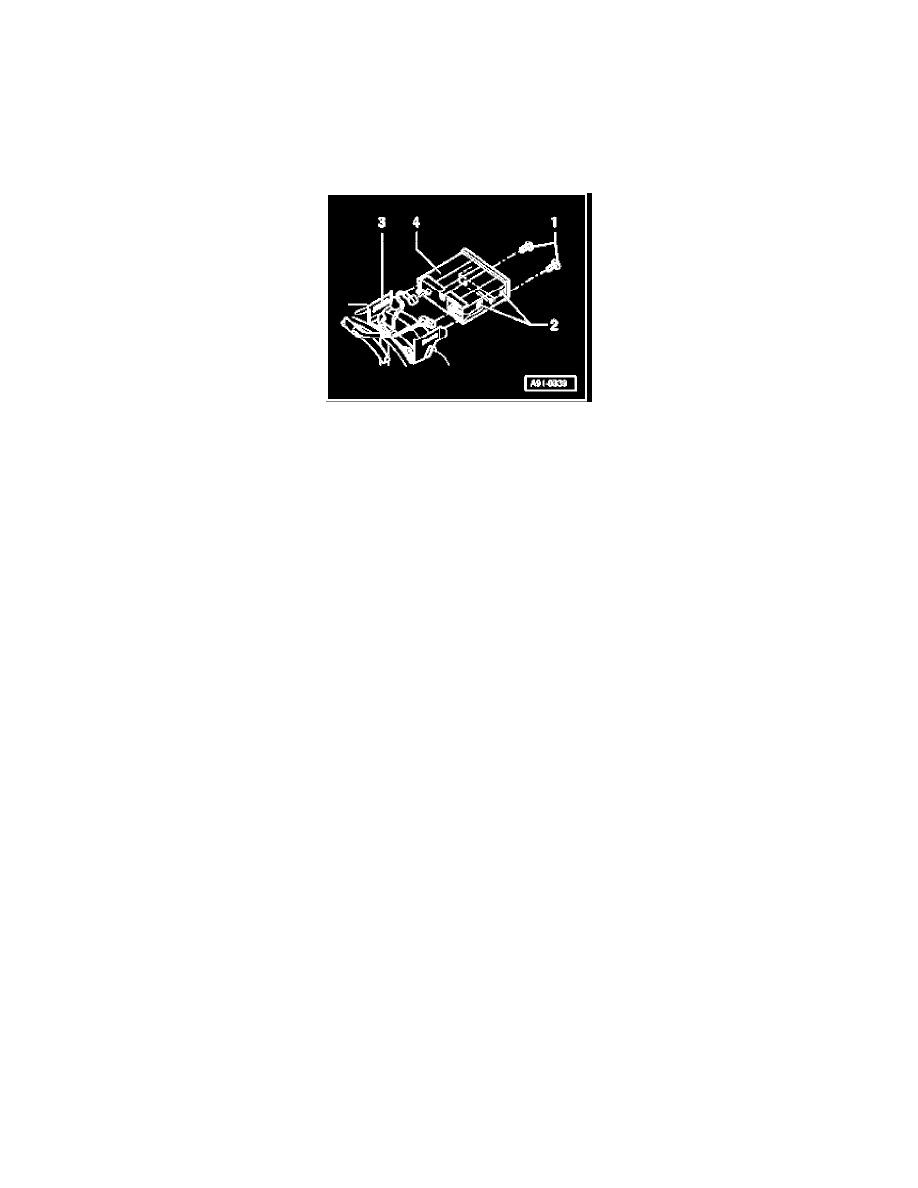

Remove both mounting bolts -1- (2.5 Nm) and remove the control module for navigation together with installation frame -4-. The installation
frame is guided by tracks -3- on the left and right.
-
Disconnect electrical harness connectors and antenna wire (GPS) at rear of control module for navigation with CD drive.
-
Remove installation frame -4-.
-
Unscrew the four mounting screws -2- at left and right at Control module for navigation with CD-mechanism -J401-, and remove it from the
installation frame -4-.
CAUTION: Use only original bolts when securing control module. Otherwise, the control module may be destroyed.
Installing
-
Install in reverse order of removal.
Notes for installation:
-
The control module for navigation and the installation frame must be installed together in a horizontal position and free from vibration to avoid
system trouble.
-
The ventilation slots of the control module may not be covered once installed.
