Shift Interlock Solenoid: Locations

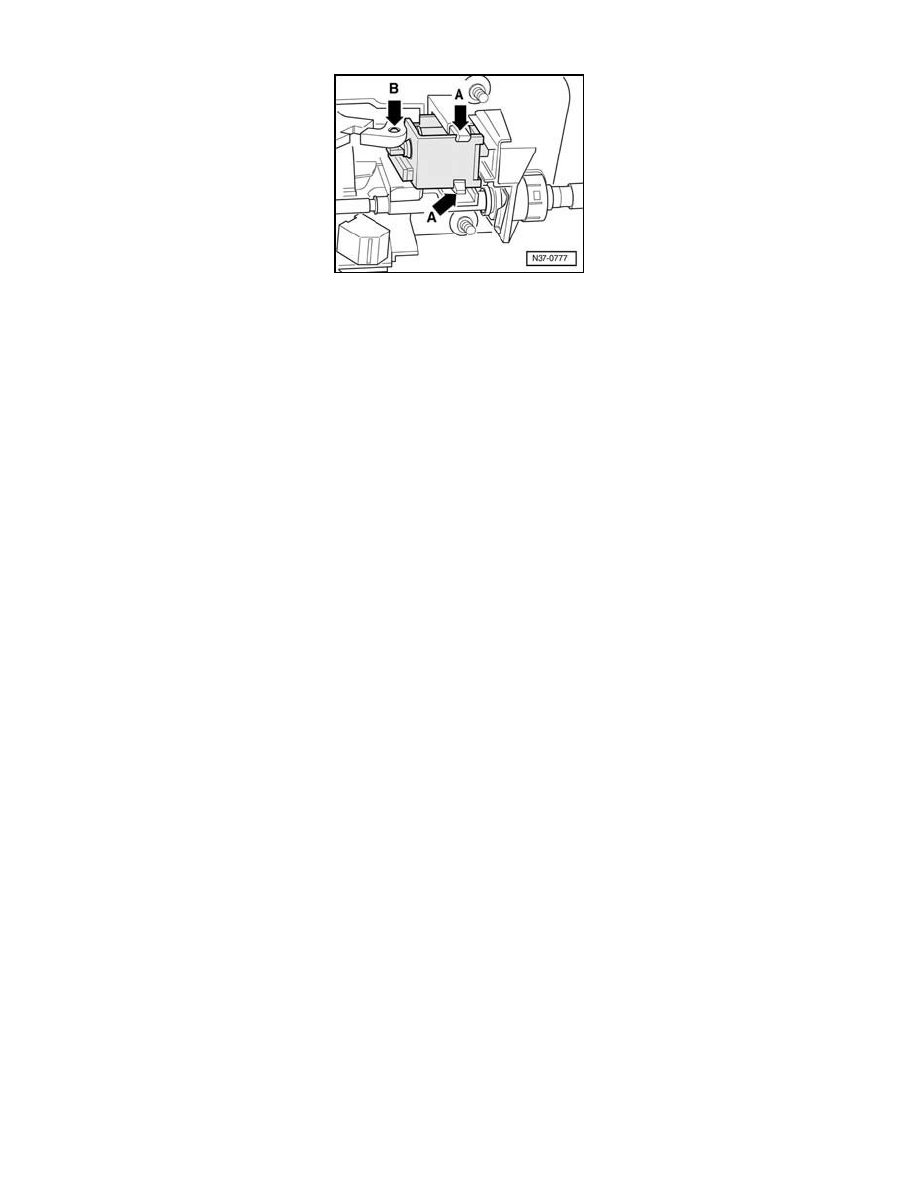

Fig. 2 Shift lock solenoid - N110 -, 09G, 6 Speed A/T

Location: The shift lock solenoid is located in the shift mechanism.
