TTS Quattro Roadster L4-2.0L Turbo (CDMA) (2009)
/Page-1757001.png)
Voice Activation Microphone: Diagrams

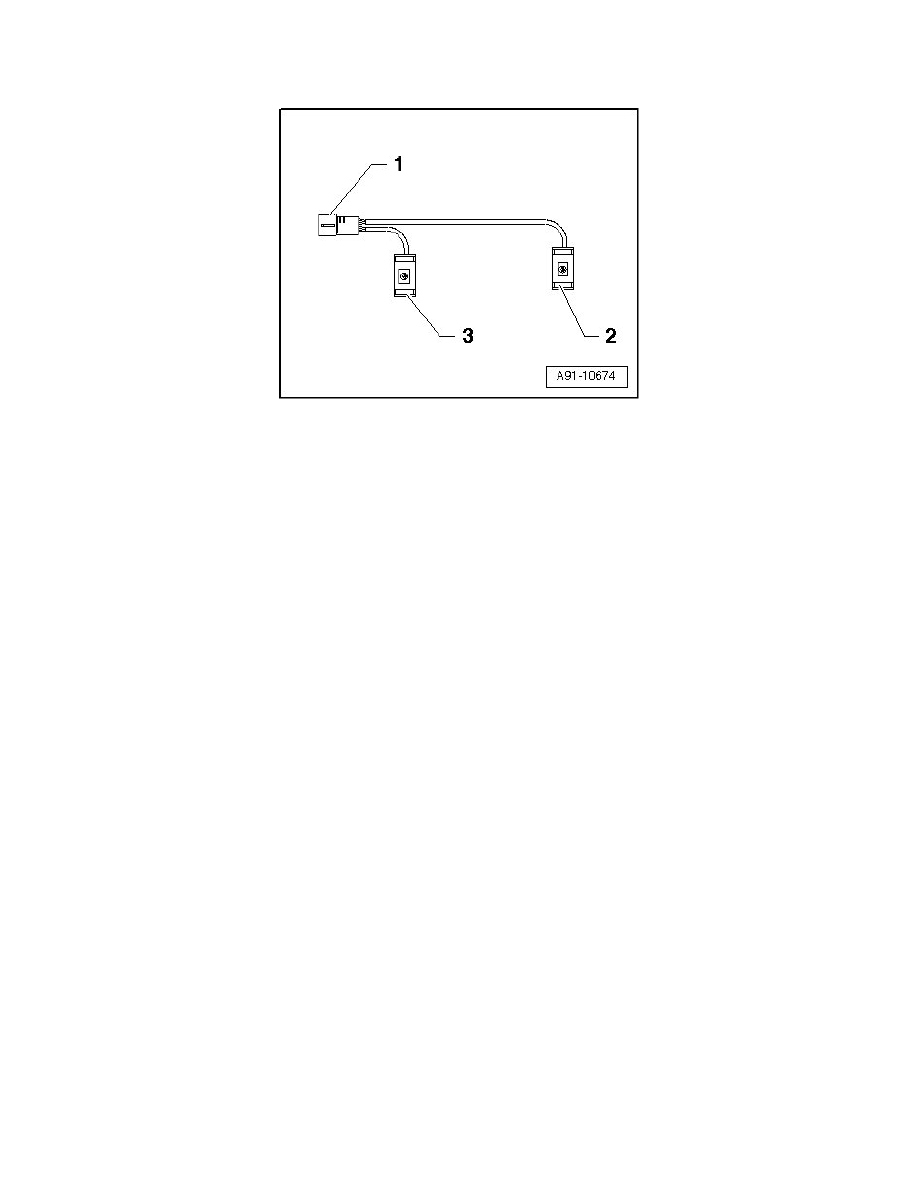

Microphone Unit, Multi-Pin Connector Assignments
1 - Black 4-pin multi-pin harness connector (T4g)
1
Microphone 1 to Telephone Transceiver (R36)
2
Microphone 1 to Telephone Transceiver (R36)
3
Microphone 2 to Digital Sound System Control Module (J525)
4
Microphone 2 to Digital Sound System Control Module (J525)
2 - Microphone 1
3 - Microphone 2
