V8 Quattro V8-3562cc 3.6L DOHC (PT) (1990)

  • Relays and Modules
  • Relays and Modules - Body and Frame
  • Power Seat Relay
  • Component Information
  • Locations

Page 1
background image

Power Seat Relay: Locations

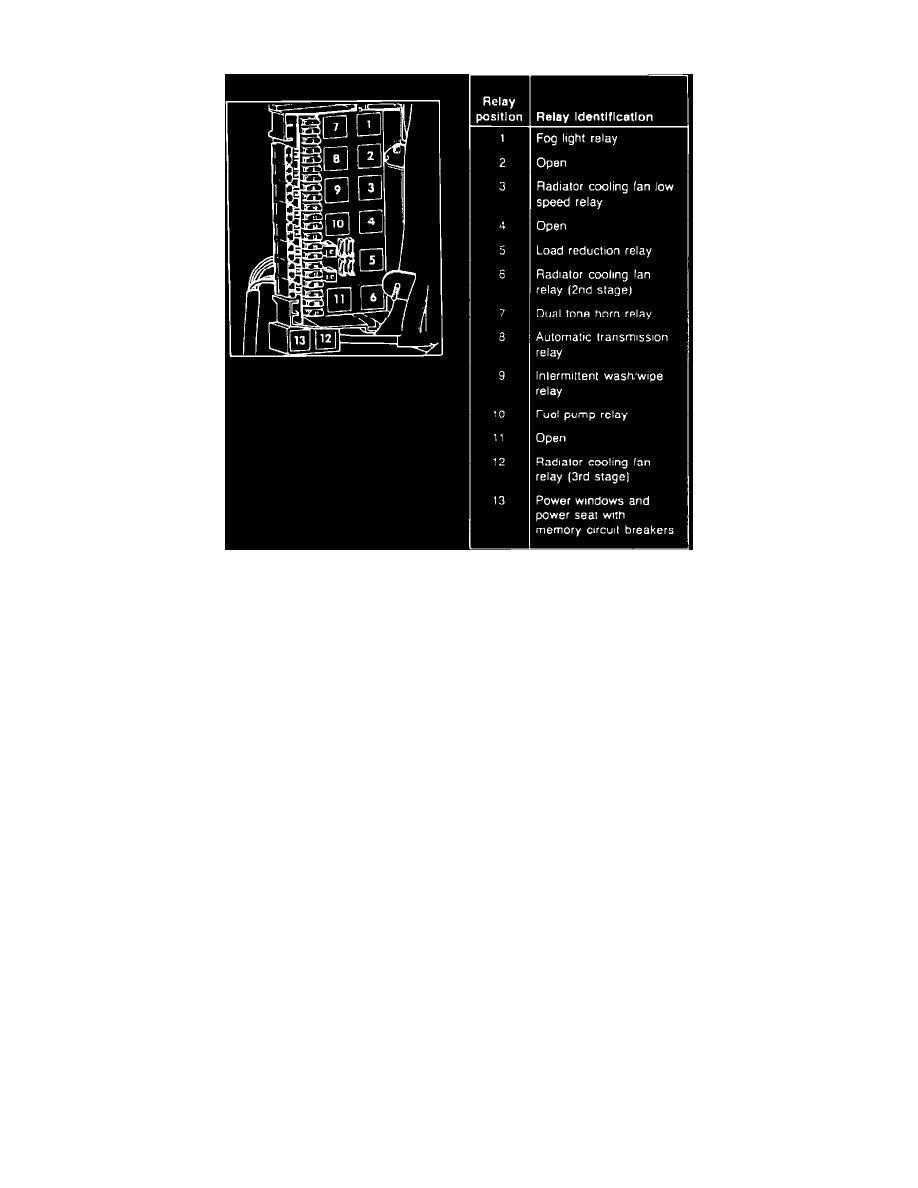

Fuse/Relay Panel

 Fuse/Relay Panel
