1 Series E81 118d (N47) 3-door
23 00 017
Removing and installing transmission (GS6-
17DG) N47
Special tools required:
•
00 2 030
•
21 2 221
•
23 0 132
•
23 4 050
Important!
After completion of work, check gearbox oil level.
Use only the approved transmission oil.
Failure to comply with this requirement will result in serious
damage to the manual transmission.
Necessary preliminary tasks:
•
Disconnect battery
•
Remove front underbody protection.
•
Remove rear underbody protection.
•
Remove exhaust system without primary catalytic converter.
•
Remove heat shields.

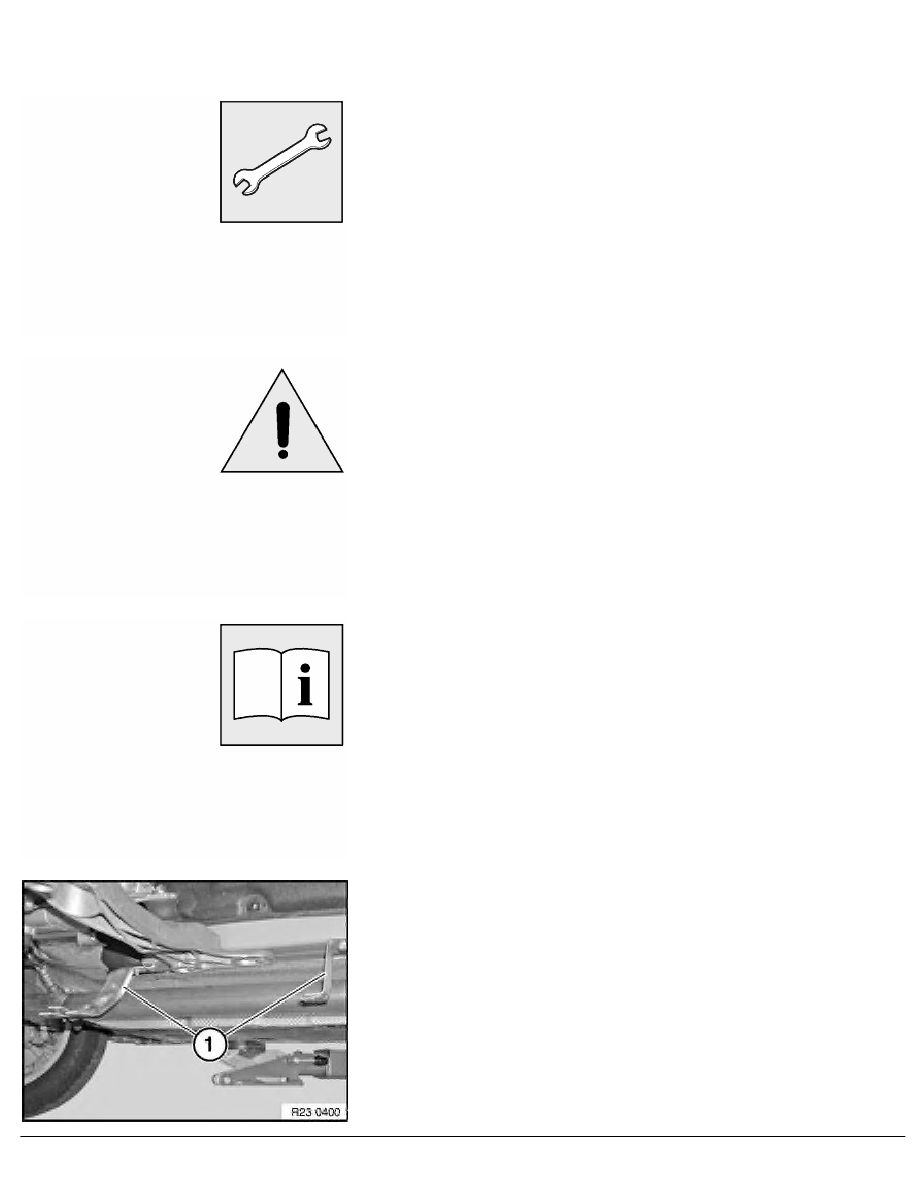

Unscrew holder (1).
RA Removing and installing transmission (GS6-17DG) N47
