1 Series E81 118i (N46T) 3-door
51 71 447

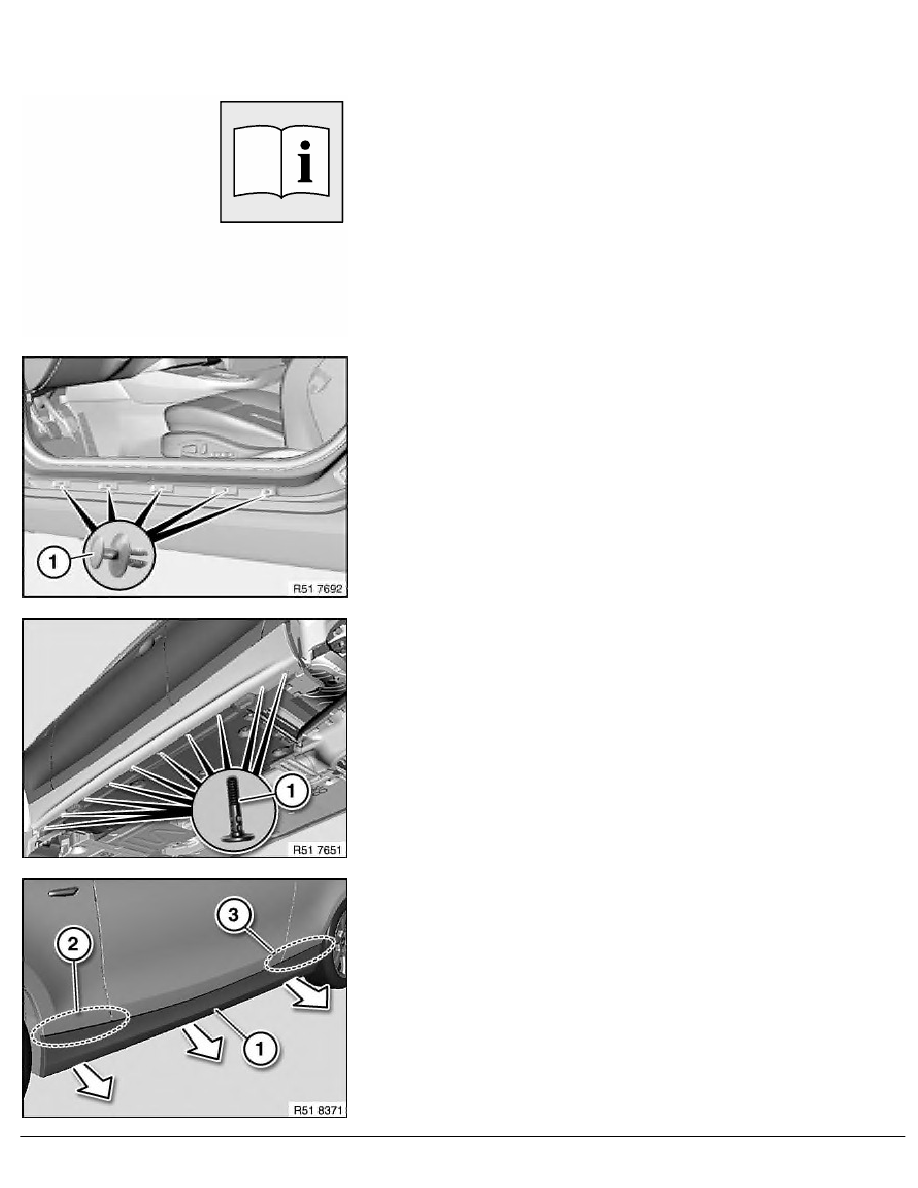

Removing and installing or replacing panel
for cover on left or right side member
Necessary preliminary tasks:
•
Remove entrance cover strip
Release expansion rivets (1).
Release screws (1).
Unclip trim panel (1) from retainers in areas (2 and 3).
Open door and remove panel (1) in direction of arrow.
RA Removing and installing or replacing panel for cover on left or right side membe
BMW AG - TIS
19.01.2013 00:46
Issue status (12/2007) Valid only until next DVD is issued
